Air-Cooled Low-Temp Chiller

Request a Quote

Website: http://industrialchiller-en.com/2-4-air-cooled-low-temp-chiller.html

(Screw)

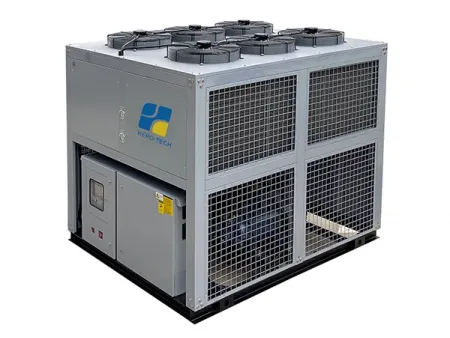

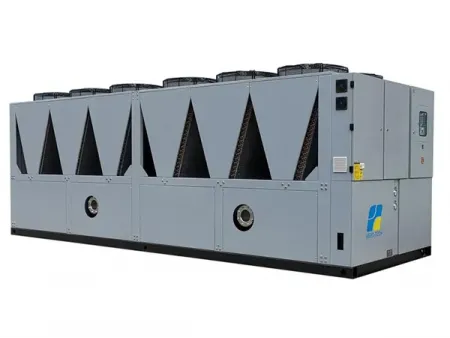

Industrial air-cooled chiller with semi-hermetic screw compressor for low temperature cooling ranging from -30° to 0°C

Refrigerant: R22/R404A
Power source: 3Ph 380V~415V 50Hz/60Hz
Compressor: semi-hermetic screw compressor
Chilled water temperature range: -30°C to 0°C (adjustable temperature)
Min. dimensions (L×W×H): 2530×1700×1960mm

These large-capacity air-cooled low-temperature chillers are engineered for demanding applications in non-ferrous metallurgy, electronics, chemical processing, food production, air separation, and hydrogen energy cooling. Operating temperatures can be precisely set between -30°C and 0°C, making them suitable for diverse industrial processes.

These industrial air-cooled chillers are equipped with Bitzer or Hanbell semi-hermetic screw compressors, along with components and electrical controls from leading global brands, to ensure reliable and consistent performance. The PLC control system with HMI touch interface offers intuitive operation, while units can be customized to match specific site conditions and process requirements.

Technical Specifications

Model (HTS-***)				40A	50A	60A	80A	90A	100A	110A	135A	150A
Nominal cooling capacity	-10℃		kW	47	61.6	66.3	88.7	105.2	111	123.6	144.5	175.9
	-20℃			27	35.6	38.2	51.2	60.9	64.2	71.7	83.6	101.9
	-30℃			12.8	17	18.2	24.4	29.2	30.7	34.3	40	48.8
Input power			kW	40.7	50.3	56.3	73.6	82.6	88.2	95.5	115.4	136.2
Power source				3Ph 380V-415V 50Hz/60Hz
Refrigerant	Type			R22/R404A
	Charge		kg	28	35	42	52	59	63	70	84	90
	Control			Thermostatic expansion valve
Compressor	Type			Semi-hermetic screw compressor
	Motor power		kW	37.1	467	515	67.2	762	81	88.3	105.8	126.6
	Start mode			Y-△
	Capacity control		%	0-25-50-75-100
Evaporator	Type			Shell and tube evaporator/SS plate heat exchanger
	Chilled water volume	-10℃	m³/h	8.08	10.59	11.4	15.25	18.09	19.09	21.25	24.85	30.25
		-20℃		4.64	6.12	6.57	8.8	10.47	11.04	12.33	14.37	17.52
		-30℃		2.2	2.92	3.13	4.19	5.02	5.28	5.89	6.88	8.39
	Water pressure drop		kPa	32	35	38	4	47	45	43	43	41
	Pipe connection		inch	3	3	3	3	3	4	4	4	5
Condenser	Type			Air-cooled type finned copper tube condenser
Fan	Type			High-flow low-noise axial fan
	Power		kW	0.6×6	0.6×6	0.8×6	08×8	0.8×8	0.9×8	09×8	0.8×12	0.8×12
	Air flow		m³/h	53520	53520	74520	99360	99360	120960	120960	149040	149040
Safety devices				Compressor internal protection Overcurrent protection High/low pressure protection Over temperature protection Flow rate protection Phase sequence/phase missing protection Low level coolant protection Anti-freezing protection Exhaust overheat protection
Dimensions	Length		mm	2530	2650	2950	3310	4000	4300	4300	5650	5650
	Width		mm	1700	180	180D	1870	2000	2000	2000	2000	2000
	Height		mm	1960	2060	2160	2200	2050	2170	2170	2070	2070
Net weight			kg	1350	1650	1950	2250	2400	2600	2860	3000	3250
Running weight			kg	1450	1750	2100	2450	2600	2850	3110	3300	3550

The data mentioned above is based on the following design conditions:

Condensing temperature: 48°C
Ethylene glycol–water solution concentration: 47.8% by volume

Note: Specifications are subject to change without prior notice

Model (HTSL-***)					80AD	100AD	120AD	160AD	180AD	200AD	220AD	270AD	300AD
Nominal cooling capacity		-10℃		kW	94	123.2	26	177.4	210.4	222	247.2	289	351.8
		-20℃			54	71.2	76.4	102.4	121.8	128.4	143.4	167.2	203.8
		-30℃			25.6	34	36.4	48.8	58.4	61.4	68.6	80	97.6
Input power				kW	80.6	100.6	112.6	145.2	165.2	176.4	191	230.8	272.4
Power source					3Ph 380V~415V 50Hz/60Hz
Refrigerant	Type				R22/R404A
	Charge			kg	56	70	84	104	118	126	140	168	196
	Control				Thermostatic expansion valve
Compressor	Type				Semi-hermetic screw compressor
	Motor power			kW	37.1×2	46.7×2	51.5× 2	67.2× 2	76.2×2	81×2	88.3×2	105.8×2	126.6×2
	Start mode				Y-△
	Capacity control			%	0-25-50-75-100
Evaporator	Type				Shell and tube evaporator/SS plate heat exchanger
	Chilled water volume		-10℃	m³/h	16.16	21.18	22.8	30.5	36.18	38.18	42.5	49.7	60.5
			-20℃		9.28	12.24	13.14	17.6	20.94	22.08	24.66	28.74	35.04
			-30℃		4.4	5.84	6.26	8.38	10.04	10.56	11.78	13.76	16.78
	Water pressure drop			kPa	45	43	43	41	42	45	42	46	48
	Pipe connection			inch	3	4	4	5	5	6	6	6	8
Condenser	Type				Air-cooled type finned copper tube condenser
Fan	Type				High-flow low-noise axial fan
	Power			kW	0.8×8	0.9×8	0.8×12	0.9×12	0.8×16	0.9×16	0.9×16	08×24	0.8×24
	Air flow			m³/h	99360	120960	149040	181440	198720	241920	241920	298080	298080
Safety devices					Inner thermostat for compressor motor Overload relay High and low pressure switch Anti-freeze protection Reverse phase protection relay Discharge gas thermostat Flow switch
Dimensions	Length			mm	4000	4300	5650	5980	8000	8600	8600	11300	11300
	Width			mm	2000	2000	2000	2000	2000	2000	2000	2000	2000
	Height			mm	2050	2170	2070	2170	2050	2170	2170	2070	2070
Net weight				kg	2600	3050	3450	3800	4200	4450	4850	5300	5550
Running weight				kg	2900	3350	3750	4200	4600	4950	5350	5900	6150

The data mentioned above is based on the following operating conditions:

Condensing temperature set at 48°C
Ethylene glycol–water mixture with a 47.8% volume ratio
For models HTSL-150AD and above, the chiller design is modular.

Note: Specifications are subject to change without prior notice
