Request a Quote

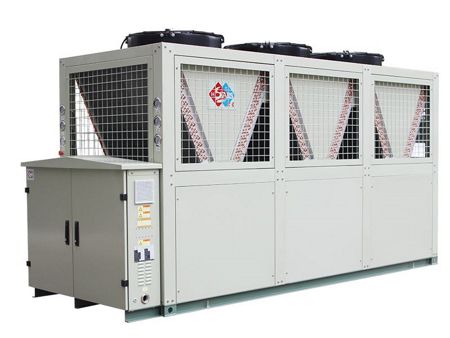

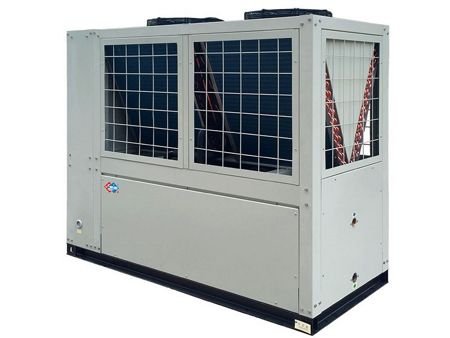

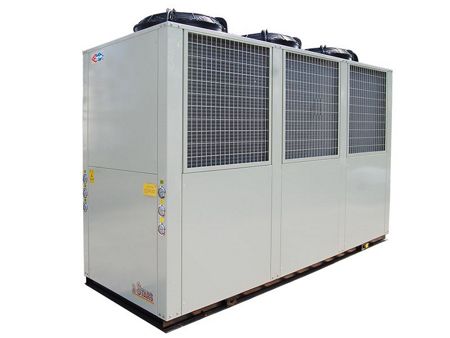

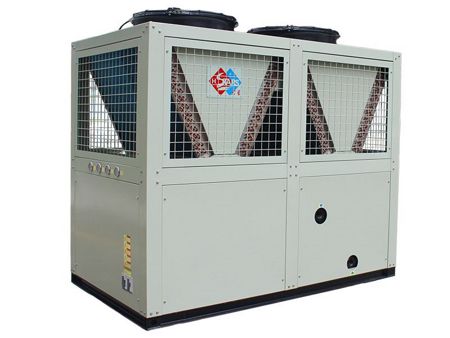

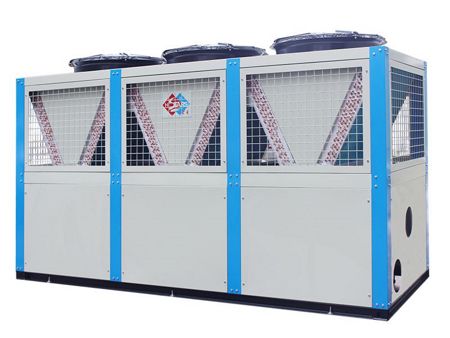

Chilled water system for commercial applications

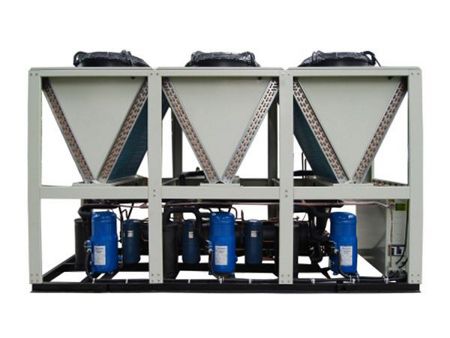

The 20STB series air-cooled chiller is a high-quality product, designed with brand compressors and electronic control components. Incorporated with a highly efficient fin type condenser and a shell and tube evaporator, it is capable of delivering a out temperature ranging from 5°C to 20°C with refrigerant R134a, and a refrigeration capacity range of 25kW-308kW. The scroll chiller is equipped with microcomputer control and various protective features, ensuring accurate operating conditions and a highly dependable performance. This chiller is perfectly suited for flexible, small-scale productions in hotels, shopping malls, office buildings, as wells as other commercial buildings.

Features
  • Energy efficient

    The major components and patented intellectual property are all manufactured by ourselves, ensuring optimal system capacity. The total COP of this unit reaches 6.0. Moreover, the water-cooled chiller may feature our distinctively patented heat recovery device, capable of recovering more than 30% of cooling potential or the full amount with air conditioning. Further, the hot water's maximum temperature can reach 70°C. Heat recovery does not consume energy, but offers a five-percent boost in total unit efficiency.

  • Intelligent control

    The controller of the chiller uses an advanced HMI control that boosts the defensive capacities of the comprehensive setup. The Siemens PLC controller, providing Modbus RTU, TCP, and S7 communication, can be chosen optionally.

  • Safe and secure

    This system, tailored specifically for high precision water outlet, has been designed with various safety protocols to guarantee the unit's safe operation. Every unit has been rigorously tested against the safety detection system before being shipped out, guaranteeing its performance is up to national standards.

  • Easy installation and maintenance

    The chiller unit have already been equipped with a refrigerant and compressor oil during the production, making it simple for the customer to connect the inlet and outlet pipes and power supply to get it up and running. Thanks to a clear and easy to understand control interface, any potential faults can quickly be identified, allowing swift repair. Additionally, each component in the unit has been carefully designed for maximum accessibility, making maintenance a breeze.

Specifications

Air-Cooled Scroll Chiller

Refrigerant: R410A
Power supply: 380V-3N-50Hz

Model Nominal cooling capacity kW Compressor power input kW Opearting current A Capacity control % Condenser Evaporator Noise level dB(A) Weight kg
Structure Air flow ×1000 m3/ h Power kW× unit Pipe diameter (inlet/outlet) in Water flow m3/h Design water pressure MPa Water pressure drop kPa
20STB-V50AI4 152 40 70 0
50
100
Copper tube with corrugated aluminum fins 14.5 1.2×1 1-1/2" 5 1 23 63 400
20STB-V75AI4 227 60 105 0
33
66
100
14.5 1.2×1 2" 6 1 28 64 450
20STB-V90AI4 274 72 126 20 2.0×1 2" 8 1 30 65 540
20STB-V100AI4 303 80 140 0
25
50
75
100
29 1.2×2 2" 10 1 28 66 760

Notes:

  • 1. Rated cooling capacity standard: air dry / wet bulb temperature 35℃ /24℃, chilled water inlet/outlet temperature 17℃ /12℃, fouling factor 0.088 ㎡•℃ /kW;
  • 2. Chiller water temperature range: 5℃ ~20℃;
  • 3. Ambient temperature range: -5℃ ~43℃.
  • 4. Specifications and dimensions are subject to improvement without notice.
Optional
  • Heat recovery

    The chiller's condensing heat, typically released into the atmosphere via a cooling tower, can now be effectively harnessed. With the heat recovery technology, heat absorbed during cooling can be transferred to the building, providing hot water where needed. During the cooling season, the heat recovery unit can provide free hot water above 50°C, utilizing up to 30-100% of the cooling capacity for heat recovery.

  • Simultaneous cooling and heating

    This unit offers a two-in-one chiller and heater that optimizes cooling and heating needs, providing a novel and environment-friendly way of conserving energy. With simultaneous cooling and heating capability, the unit reduces power consumption, thereby increasing its Coefficient of Performance (COP) value.

  • Anti-corrosion chiller

    This product is designed to be resistant to the corrosive materials found in water sources, protecting against damage caused by exposure.

  • High precision chiller

    This product is perfect for high-end laboratories, manufacturing, and health care establishments that require utmost accuracy in cooling water temperature.

  • Non-standard chiller

    We offer a selection of unique customization options, including 460V-3P-60Hz, 440V-3P-60Hz, and other non-standard power supply units.

  • Anti-corrosion heat exchange fins

    This product makes use of a variety of anti-corrosive measures, through its materials i.e. copper foil and stainless steel sheet, or through its processes such as electrophoresis and spraying. This guarantees protection against erosion in any corrosive environment.

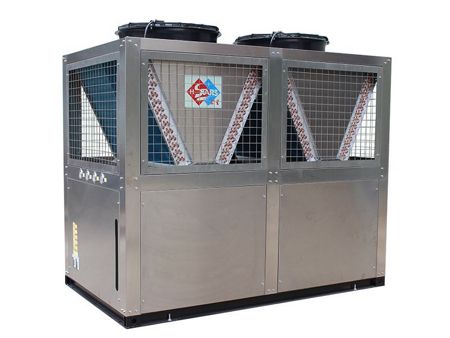

  • Stainless steel shell

    This custom all-stainless steel shell unit offers superior protection against corrosion and rust due to its environment.

  • Cloud service (remote control)

    It offers the ability to manage operations without the need to be on-site, providing a convenient and efficient way to complete tasks.

  • Explosion-proof chiller and heater

    Our chiller and heater can be designed and constructed to adhere to all national explosion-proof regulations, ensuring the strictest of safety protocols and allowing it to attain an explosion-proof electrical certificate.

  • Customized unit

    Waterproof electrical enclosures design according to IP ratings
