Casing
Request a Quote

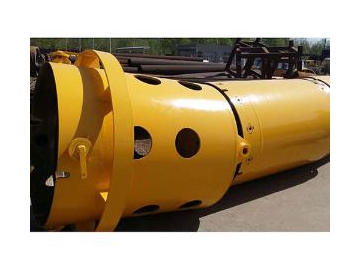

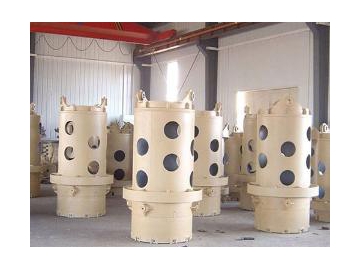

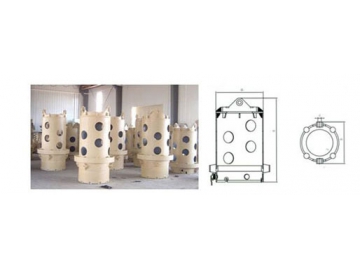

Casing drive adapter
| Φmm | dmm | Bmm | H | kg |
| φ620/540 | 70 | 848 | 1794 | 679 |
| φ750/670 | 70 | 848 | 1794 | 759 |
| φ800/720 | 70 | 84848 | 1794 | 816 |
| φ880/800 | 70 | 848 | 1794 | 870 |
| φ900/820 | 70 | 848 | 1794 | 894 |
| φ1000/920 | 70 | 848 | 1794 | 1015 |
| φ1180/1100 | 70 | 848 | 1794 | 1202 |
| φ1200/1120 | 70 | 848 | 1794 | 1235 |
| φ1300/1220 | 70 | 848 | 1794 | 1343 |
| φ1500/1400 | 70 | 848 | 1794 | 2019 |
| φ1800/1700 | 70 | 848 | 1794 | 2580 |
| φ2000/1880 | 70 | 848 | 1794 | 3673 |
| φ2500/2380 | 70 | 848 | 1794 | 5072 |

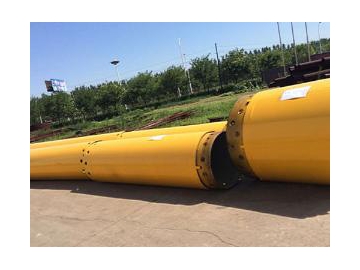

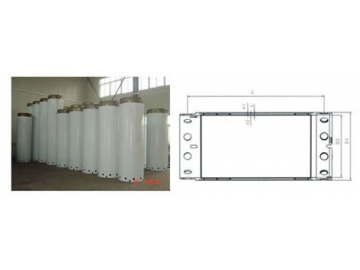

Double wall casing for drilling rigs
| D1/D2(mm) | L | a1(mm) | a2(mm) | t (mm) | ||||
| 2m | 3m | 4m | 5m | 6m | ||||
| kg | ||||||||
| φ620/540 | 781 | 1125 | 1485 | 1839 | 2186 | 12 | 8 | 40 |
| φ750/670 | 952 | 1378 | 1806 | 2234 | 2665 | 12 | 8 | 40 |
| φ800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| φ880/800 | 1128 | 1635 | 2139 | 2650 | 3159 | 12 | 8 | 40 |
| φ900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| φ1000/920 | 1364 | 1860 | 2443 | 3025 | 3604 | 12 | 8 | 40 |
| φ1180/1100 | 1662 | 2433 | 3205 | 3972 | 4753 | 16 | 8 | 40 |
| φ1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 16 | 8 | 40 |
| φ1300/1220 | 1834 | 2687 | 3542 | 4394 | 5245 | 16 | 8 | 40 |
| φ1500/1400 | 2816 | 4041 | 5266 | 6492 | 7717 | 20 | 10 | 50 |
| φ1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |

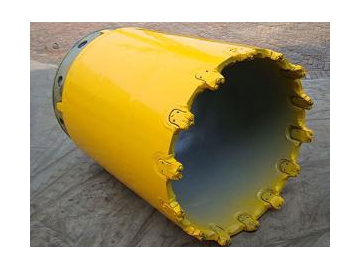

Casing shoe
| D | d | h | Teeth Number | kg |
| φ620 | 540 | 586 | 9 | 280 |
| φ750 | 670 | 586 | 10 | 335 |
| φ800 | 720 | 586 | 11 | 368 |
| φ880 | 800 | 586 | 13 | 408 |
| φ900 | 820 | 586 | 14 | 419 |
| φ1000 | 920 | 586 | 15 | 468 |
| φ1180 | 1100 | 586 | 17 | 557 |
| φ1200 | 1120 | 586 | 18 | 567 |
| φ1300 | 1220 | 586 | 19 | 615 |
| φ1500 | 1420 | 586 | 22 | 1023 |
| φ1800 | 1720 | 586 | 26 | 1235 |
| φ2000 | 1880 | 802 | 30 | 1796 |
| φ2500 | 2380 | 802 | 38 | 2261 |

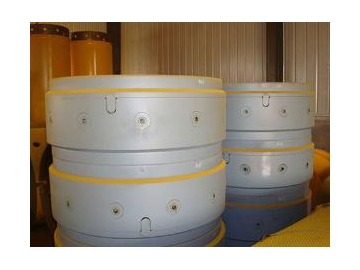

Connector of drilling follower
| Type | D | B | kg |
| I | 74.5 | 38 | 1 |
| II | 98.5 | 59 | 3 |
| D1/D2 | H | b | n(piece) | Hole(piece) | Bolt | Kg/set |
| φ620/540 | 350 | 40 | 4 | 8 | I | 233 |
| φ750/670 | 350 | 40 | 4 | 10 | I | 285 |
| φ800/720 | 350 | 40 | 4 | 10 | I | 304 |
| φ880/800 | 350 | 40 | 4 | 10 | I | 333 |
| φ900/820 | 350 | 40 | 4 | 10 | I | 341 |
| φ1000/920 | 350 | 40 | 4 | 10 | I | 381 |
| φ1180/1100 | 350 | 40 | 4 | 12 | I | 438 |
| φ1200/1120 | 350 | 40 | 4 | 12 | I | 450 |
| φ1300/1220 | 350 | 40 | 4 | 12 | I | 483 |
| φ1500/1400 | 480 | 50 | 4 | 12 | I | 950 |
| φ1800/1700 | 480 | 50 | 4 | 16 | I | 1146 |
| φ2000/1880 | 480 | 60 | 6 | 12 | II | 1745 |
| φ2500/2380 | 480 | 60 | 8 | 16 | II | 2197 |
