Demoulding Crane

Request a Quote

View All: http://wallpanel-machines.com/2-4-demoulding-crane.html

Concrete block clamp and lifting device for the removal of the mould

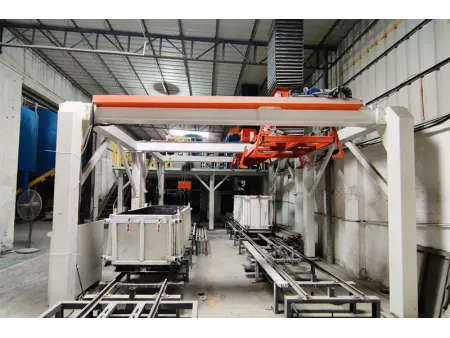

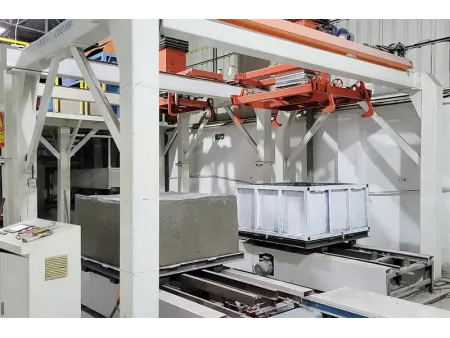

The demoulding crane (concrete block clamp) is used used to separate the concrete cake from the mould. It typically features a hydraulic pusher structure with four hooks that automatically open and close. This mechanism moves the mould frame from bottom to top and laterally transfers the empty mould to combine with a second bottom plate, ensuring the continuous use of the mould.

Specifications

Dimensions: 4.8×2.5×4.2m
Power: 5.0kW
Usage: separating block mould and bottom plate, and transporting empty mould to another bottom plate for mould assembling

Features

Lifting and transferring: The demoulding crane not only handles the demoulding process but also lifts and transfers the demoulded mould frame to designated positions, such as the mould return line.

Automation and efficiency: modern demoulding cranes are usually equipped with automatic control systems that perform precise operations according to preset programs, enhancing production efficiency.

Stability and safety: the design of the demoulding crane emphasizes stability and safety to ensure that concrete blocks do not fall or get damaged during operation.

Adaptability: demoulding cranes are generally capable of accommodating moulds of different specifications and sizes, providing greater flexibility on the production line to meet various production needs.
