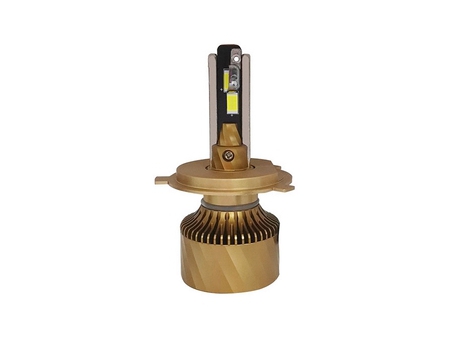

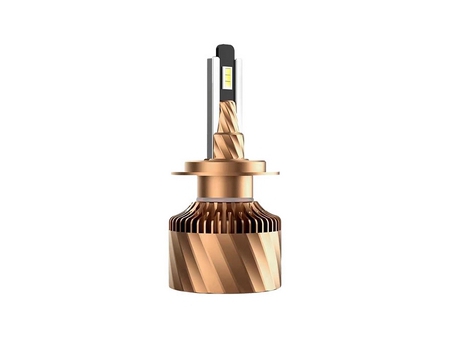

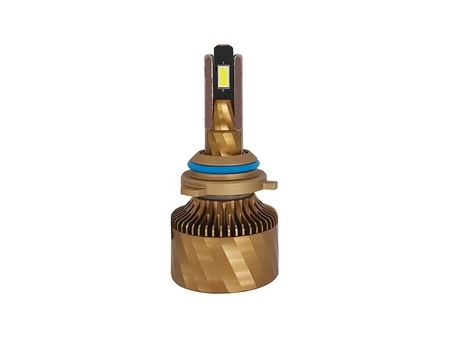

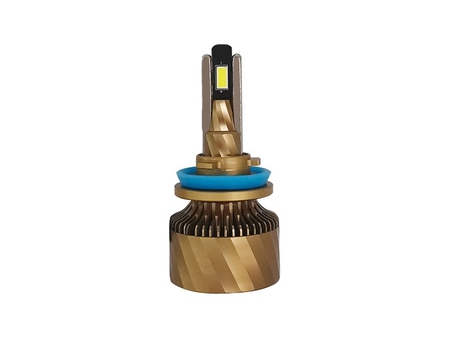

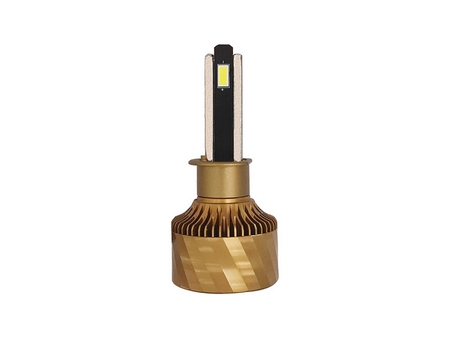

F10 Series LED Headlight Bulb

F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
F10 Series LED Headlight Bulb
Request a Quote
Features
  • The heat sink measures 32mm in diameter and 30.5mm in height, with a power output of 55W, ensuring optimal cooling performance.
  • Equipped with 6*51 3570 LED chips and a single superconducting heat pipe, along with S-shaped fins made of AL6063 material (European standard), which enhances heat dissipation.
  • The bulb features double-sided copper base plates (1.5mm) securely pressed with aluminum components and perfectly welded to the heat pipe for superior heat conduction. The external driver and smart temperature control system offer further protection to the LED chips.
  • The bulb has a sleek, small design with powerful performance, featuring EMC and decoding functions, and is protected by patents.
Specification
Series F10
Model F10 H1 F10 H4 F10 H7 F10 H11 F10 9005 F10 9006 F10 9012
Voltage (V) DC9-60
Power (W) 55
Luminous Flux (lm) 4500
Color temperature (K) 6500
Driver External driver
Fan Yes
