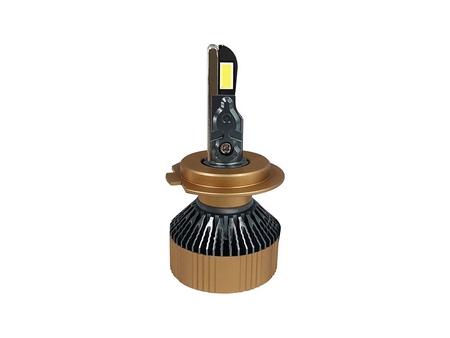

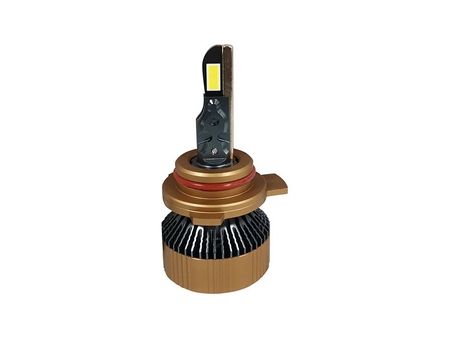

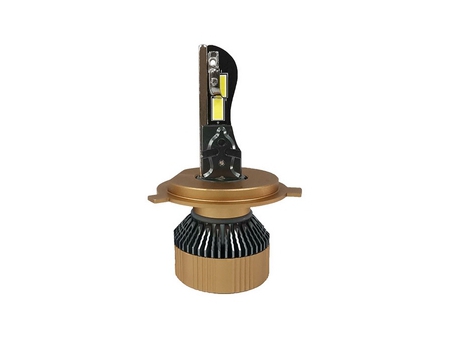

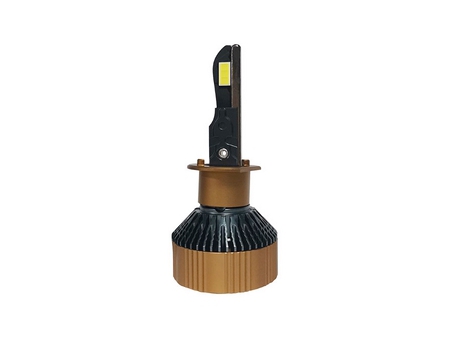

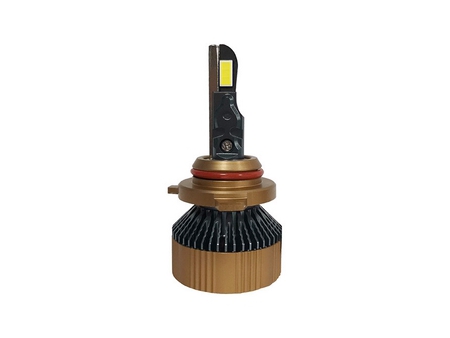

N9 Series LED Headlight Bulb
Request a Quote
Features
- The heat sink has a diameter of 32mm and a height of 28.5mm, with a 45W power output, ensuring effective cooling.
- The bulb features 3570 LED chips and S-shaped cooling fins made from high-quality AL6063 material (European standard), which enhances heat dissipation and performance.
- The bulb includes 1.5mm double-sided copper base plates, securely pressed with aluminum components, and an external driver with a smart temperature control system for optimal LED chip protection.
- Its patented design offers a sleek, compact appearance with powerful output, including EMC and decoding functions for advanced performance.
Specification
| Series | N9 | ||||||
| Model | N9 H1 | N9 H4 | N9 H7 | N9 H11 | N9 9005 | N9 9006 | N9 9012 |
| Voltage (V) | DC9-60 | ||||||
| Power (W) | 45 | ||||||
| Luminous Flux (lm) | 3800 | ||||||
| Color temperature (K) | 6500 | ||||||
| Driver | External driver | ||||||
| Fan | Yes | ||||||
