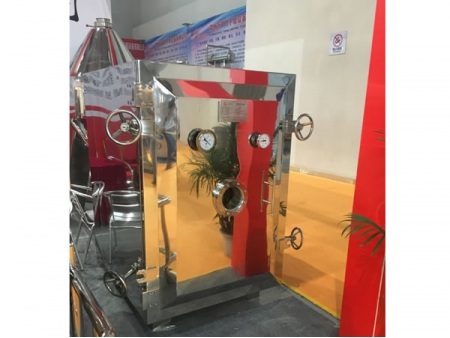

This vacuum dryer is designed for drying heat sensitive raw materials that can decompose or polymerize at high temperatures. This type of drying equipment is often found in pharmaceutical, chemical, food and electronics production.

It is well documented that vacuum drying is a quick and effective way to heat and dry raw materials with strict safety requirements.

Parameters
Specification
Items unit 100 200 350 500 750 1000 1500 2000 3000 4000 5000
Total volume L 100 200 350 500 750 1000 1500 2000 3000 4000 5000
Working volume L 50 100 175 250 375 500 750 1000 1500 2000 2500
Heating area M2 1.16 1.5 2 2.63 3.5 4.61 5.58 7.5 10.2 12.1 14.1
Speed rpm 6 5 4 4 4
Power kw 0.75 1.1 1.5 1.5 2 3 3 4 5.5 7.5 7.5
Rotating height mm 1810 1910 2090 2195 2500 2665 2915 3055 3530 3800 4180
Total weight kg 825 1050 1350 1650 1800 2070 2250 3000 4500 5350 6000
Design pressure inside the tank MPa -0.09 ~ -0.096
design pressure of jacketed vessel MPa 0.3

Note: If you use a condenser, the solvent in the raw material can be recovered. If the solvent is water, the condenser might not be necessary.
