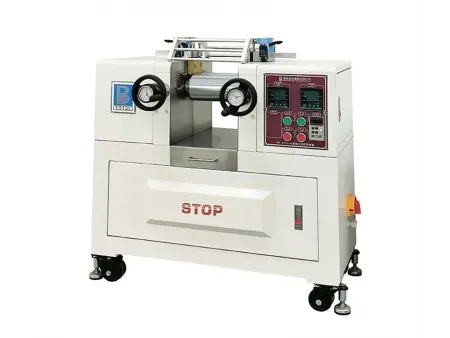

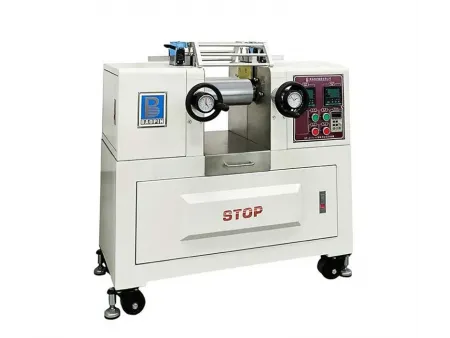

BP-8175-T Bench Top Two Roll Mill
Request a Quote
Laboratory roll mills for mixing, kneading and plasticizing rubber, plastic and other polymers
- Roll size: Ø100× L210mm
- Instrument control
- Electric heating
The bench top two roll mill is designed for polymer processing tasks such as plasticizing, mixing, and surface treatment. Its compact and lightweight design makes it ideal for benchtop use, offering versatility for small-scale applications.
Ready to take your material processing to the next level? Let the bench top two roll mill help you achieve consistent results with ease.
Applications
The bench top two roll mill is perfect for mixing, kneading, and plasticizing rubber, plastics, and other polymers, especially in small-scale production and lab environments.
- Plasticizing and mixing rubber and plastic compounds
- Surface treatment processes
- Compression molding and other small-scale production tasks
Technical Data
- Temperature range
Room temperature to 300℃ - Temperature control
LED digital display, push button input, digital readout - Heating method
Electric heating - Heating power
3kW - Speed ratio
1:1.27 - Roll size
Ø100× L210mm - Roll gap setting
0.1-5mm adjustable - Roll surface
HRC60 chrome plated, with mirror finish - Motor power
0.5kW - Dimensions (W×D×H)
700×450×700mm - Power supply
AC380V, 10A, 3-phase 5-wire - Weight
approx. 225kg
