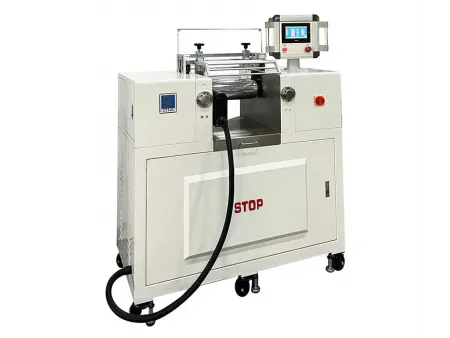

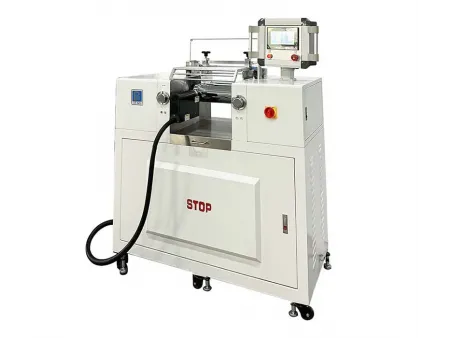

BP-8175-E Laboratory Two Roll Mill with Automatic Flipping and Gap Adjustment
Laboratory roll mills for mixing, kneading and plasticizing rubber, plastic and other polymers
- Roll size: Ø150× L350mm
- PLC control
- Electric heating and water cooling
The laboratory two roll mill with automatic flipping and gap adjustment is designed to provide efficient mixing, kneading, and plasticizing of rubber, plastics, and other polymer materials. Featuring precise automatic gap adjustment and a powerful automatic flipping mechanism, it reduces manual labor and eliminates operator errors. This ensures the repeatability and accuracy of mixed materials, improving overall productivity.
Contact us today to learn how the laboratory two roll mill with automatic flipping and gap adjustment can streamline your production and testing processes.
Applications
The laboratory two roll mill with automatic flipping and gap adjustment is ideal for rubber and plastic raw materials mixing and dispersion, making it widely used in material development, formula optimization, and small-batch production.
- Homogenizing rubber and plastic compounds
- Precise mixing of curing agents, additives, and other formula materials
- Pretreatment and molding of compounds after internal mixing
- Operation mode
Automatic flipping of materials - Temperature range
Room temperature to 300℃ - Controller
PLC programmable color touch screen, man-machine interface system, temperature, speed, time, gap and other parameters can be set and controlled - Heating method
Electric heating - Cooling method
Tap water cooling (water connection port is provided by user) - Roll size
Ø150× L350mm - Speed ratio
1:1.4 - Roll gap setting
Motorized gap adjustment - Gap adjustment accuracy
0.01mm - Roll revolution speed
0-40rpm, single frequency converter for speed regulation - Roll surface
HRC60 chrome plated, with mirror finish - Motor
5.5kW gear motor - Power supply
AC380V, 21A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 485kg
