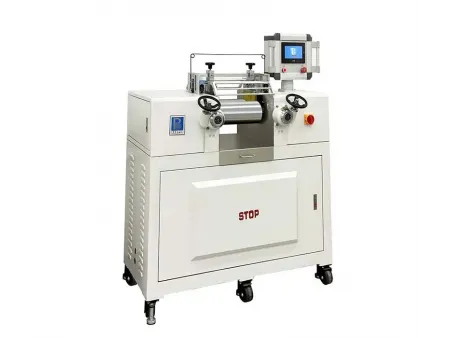

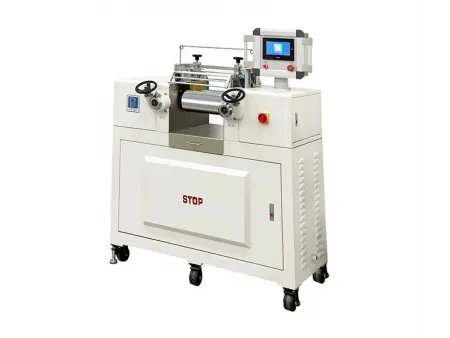

BP-8175-AL Laboratory Two Roll Mill
Laboratory roll mills for mixing, kneading and plasticizing rubber, plastic and other polymers
- Roll size: Ø150× L350mm
- PLC control
- Electric heating and water cooling
- Constant speed/variable speed
The laboratory two roll mill is designed for the mixing and dispersing of natural rubber and plastic raw materials. This laboratory two roll mill features dual rollers with a mirror chrome-plated surface, along with electric heating and water-cooling systems to effectively balance surface temperature. Equipped with a powerful roll gap adjustment system and robust safety protection features, the press is both easy to operate and durable. Contact us today to learn how the laboratory two roll mill can enhance your material processing and production capabilities.
Applications
The laboratory two roll mill is ideal for the mixing and dispersing of natural rubber and plastic raw materials, particularly for material development, formula optimization, and small-scale experimental production.
- Mixing and homogenizing rubber and plastic compounds
- Mixing and dispersing curing agents and other additives
- Shaping and pretreating compounds after internal mixing
- Temperature range
Room temperature to 300℃ - Controller
PLC programmable color touch screen with a man-machine interface system, allowing arbitrary setting and control of parameters such as roller temperature, roller revolutions, and other settings. - Heating method
Electric heating - Cooling method
Tap water cooling - Temperature accuracy
±3.5℃ - Roll size
Ø150× L350mm - Roll revolution
constant speed/speed adjustment (optional) - Roll Material
SKD chrome-molybdenum alloy, with the surface treated by carburizing, chrome plating, polishing, and other processes, achieving a Rockwell hardness of up to 60HRC. - Security Protection
Emergency stop rod, protective grille, inversion with knees, and other safety devices. - Dimensions (W×D×H)
1000×530×1150mm - Power supply
AC380V, 21A, 3-phase 5-wire - Weight
approx. 485kg
