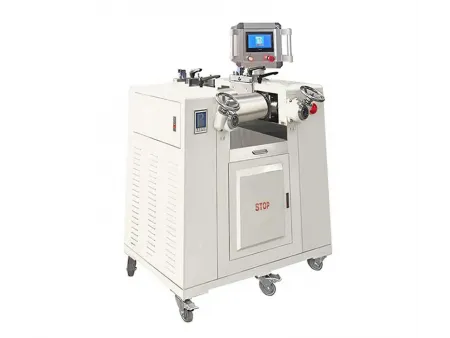

BP-8175-C Laboratory Two Roll Mill
Request a Quote
Laboratory roll mills for mixing, kneading and plasticizing rubber, plastic and other polymers
- Roll size: Ø150× L350mm
- PLC control
- Water cooling
- Constant speed
The laboratory two roll mill is designed for the efficient mixing and dispersing of rubber and other polymer materials. It features high surface hardness steel rollers with mirror chrome plating that won’t peel, powerful roll gap adjustment, and reliable safety protection devices. This ensures easy operation and durability, making it ideal for laboratory-scale mixing and small-batch production.
Contact us today to learn how the laboratory two roll mill can enhance your material mixing and production processes.
Applications
The laboratory two roll mill is widely used for mixing and dispersing rubber and other polymers, making it particularly suitable for material development, formula optimization, and small-batch production.
- Homogenizing rubber and plastic compounds
- Mixing of curing agents, additives, and other raw materials
- Pretreatment and molding of compounds after internal mixing
Technical Data
- Temperature range
Room temperature - Controller

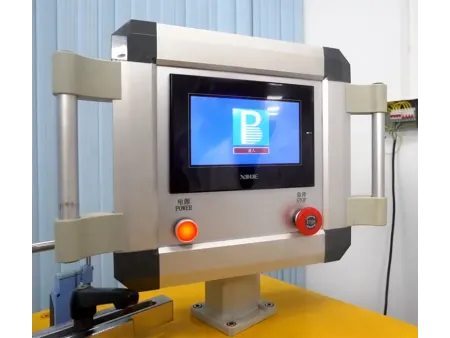

PLC programmable color touch screen with a human-machine interface, allowing arbitrary setting and control of all parameters. - Roll size
Ø150× L350mm - Roll gap setting
0.2-8mm adjustable - Roll surface
HRC60 chrome plated, with mirror finish - Speed ratio
1:1.4 - Roll revolution
36/24rpm - Cooling method
Tap water cooling (water connection port is provided by user) - Security Protection
Emergency stop rod, inversion with knees, protective fence, and other safety devices. - Dimensions (W×D×H)
1150×500×1220mm - Power supply
AC380V, 22A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 490kg
