Cut-to-Length Line

Request a Quote

Website: http://hxmachinetool.com/2-5-cut-to-length-line.html

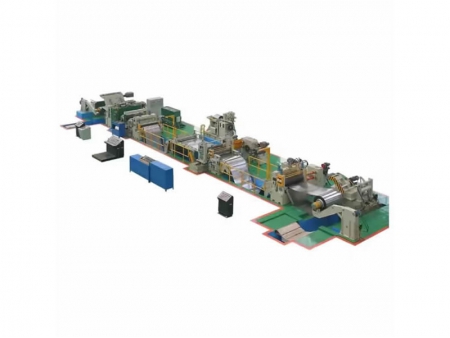

A Cut-to-Length Line is a high-efficiency system engineered to uncoil, level, and cut metal coils into flat sheets of precise, custom lengths. Designed for versatility, it accommodates a broad range of coil widths, thicknesses, and weights with reliable performance. Equipped with advanced leveling technology, the cutting line delivers exceptional flatness and surface quality, fully meeting stringent industrial requirements.

Application

Widely used in steel structures, automotive manufacturing, household appliances, building materials, and metal service centers.

Process Flow

Coil storage → Coil loading → Uncoiling → Gantry feeding → Eight-roller rough leveling → Looping → Centering → Precision leveling → Measurement and sizing → Shearing and palletizing → Lifting table → Longitudinal discharge →Packaging

Options of Cut-to-Lengh Line

Hot-Rolled Cut-to-Length Line (Uncoiling–Leveling–Shearing–Stacking)Applicable materials: hot-rolled plates, pickled plates, stainless steel, automotive plates, shipbuilding plates, aluminum plates, and more.

Model	CTL-6	CTL-8	CTL-12	CTL-16	CTL-20/25
Cutting Thickness (mm)	1.5-6.0	2-8	3-12	4-16	6-20/25
Material Width (mm)	800-2000	800-2000	800-2000	800-2200	800-2500
Cut-to-Length Size (mm)	1000-6000	1000-8000	1000-12000	2000-14000	2000-14000
Cutting Accuracy (mm)	±1.0	±1.0	±1.0	±1.0	±1.0
Diagonal Tolerance (mm)	±1.0	±1.0	±1.5	±1.5	±1.5
Leveling Accuracy (mm/m²)	< 1.0	< 1.0	< 1.5	< 1.5	< 1.5
Line Speed (m/min)	50	40	40	40	30
Coil Weight (t)	20, 30	20, 30	20, 35	20, 35	20, 35

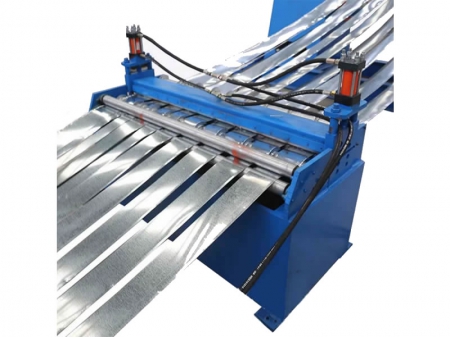

Cold-Rolled Cut-to-Length Line (Uncoiling–Slitting–Recoiling)Applicable materials: cold-rolled plates, electrolytic galvanized plates, hot-dip galvanized plates, color-coated plates, stainless steel, aluminum plates, copper plates, and more.

Model	CTLS-1	CTLS-2	CTLS-3	CTLS-4
Cutting Thickness (mm)	0.15-1.0	0.2-2.0	0.3-3.0	0.5-4.0
Material Width (mm)	300-1250	300-1600	300-1800	300-2000
Cut-to-Length Size (mm)	Customized
Length Accuracy (mm)	±0.05	±0.05	±0.10	±0.10
Diagonal Tolerance	< 3%	< 3%	< 3%	< 3%
Leveling Accuracy (mm/m²)	≤1	≤1	≤1	≤1
Line speed (m/min)	200	200	180	150
Coil Weight (t)	10, 15	10, 15, 20	15, 20, 25	20, 25, 30

Cold-Rolled Cut-to-Length Line (Uncoiling–Leveling–Shearing–Stacking)Applicable materials: cold-rolled plates, electrolytic galvanized plates, hot-dip galvanized plates, color-coated plates, stainless steel, aluminum plates, copper plates, and more.

Model	CTLV-1	CTLV-2	CTLV-3	CTLV-4
Cutting Thickness (mm)	0.2-1.0	0.3-2.0	0.4-3.0	0.5-4.0
Material Width (mm)	300-1250	300-1600	300-1800	300-1800
Finished Length (mm)	300-3000	300-3000	300-4000	400-6000
Length Accuracy (mm)	±0.3	±0.3	±0.3	±0.3
Diagonal Accuracy (mm)	±0.5	±0.5	±0.5	±0.5
Leveling Accuracy (mm/m²)	< 1	< 1	< 1	< 1
Line Speed (m/min)	70	60	60	60
Coil Weight (t)	5, 10, 15	10, 15, 20	10, 15, 20	20, 25, 30
