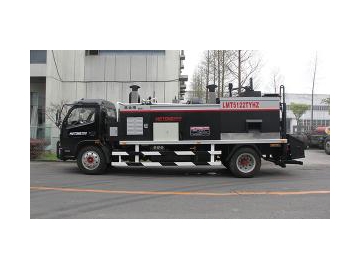

LMT5110TYHFQ Hot Recycling Road Maintenance Equipment
We develop the hot recycling road maintenance truck with in-place heat regeneration technology. This road construction truck gets the damaged pavement materials recycled completely in accordance with the requirements of circular economy development. It not only reduces the cost of materials, labor and maintenance for maintenance and construction enterprises, but also increases the construction efficiency.
Our hot recycling road maintenance truck adopts horizontal roller bin with large capacity, getting the materials inside heated rapidly and evenly. This multifunctional machine is not only applicable for heat regeneration through digging or milling the waste materials, but also suitable for mixing new materials at construction site.
Technical Parameters| Model | LMT5110TYHFQ |
| Chassis model | DFA1120SJ11D5 |
| Type Cab over | 4×2 rear drive |
| Engine model | CY4102-CE4B |
| Power (kw/rpm) | 100/2800 |
| Emission standard | GB17691-2005 (China IV) |
| Tire model | 8.25-16, 8.25-20, 8.25R16, 8.25R20 |
| Permissible passengers | 3 |
| Overall dimension (mm) | 8128×2240×2850 |
| Output voltage of generator (V) | 220/380 |
| Pavement heating panel Overall dimension (mm) | 1500×1400 |
| Diameter of roller (mm) | 450 |
| Rolling depth | Soil 250mm/bitumen100mm |
| Permissible viscosity of working medium(Cst) | ≤300 |
Advantages and Technical Features
Absorbing the advanced maintenance technology of Europe and America, our LMT5110TYHFQ hot recycling road maintenance truck is engineered to advocate the idea of green maintenance, save precious asphalt, stone and other natural resources, recycle the resources and protect the environment.
- Due to the pavement diseases such as pit slot, crack and substance, it is necessary to do the patching and maintenance work for the asphalt road. Then a large amount of old asphalt mixture will be cleared away after digging and milling.

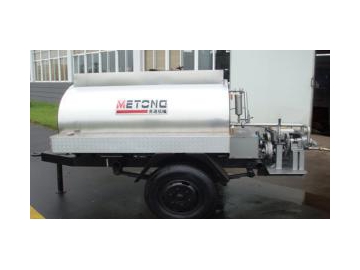

- LSB1000 trailer asphalt distributor is a specialized machine for building and maintaining the road. It is widely used for the spraying work and the liquid asphalt transport with high temperature.

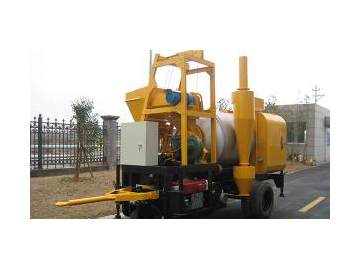

- Asphalt Mixer has record in its reliability, efficiency, quality and productivity throughout China as well as other countries. It is greatly used in highway road, mine, oil field construction and much more civil construction projects.
-
-

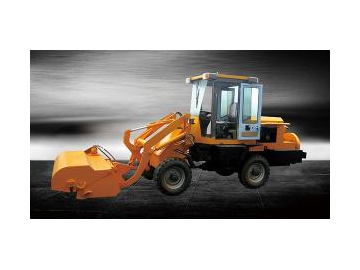

- Pavement cleaning truck is a kind of road cleaning truck, integrating cleaning and transporting. With easy constructer and convenient operation, such truck is suitable for cleaning roads and squares.
