Automatic Flatbed Die Cutter, MWZ 2100Nii

Automatic Flatbed Die Cutter, MWZ 2100Nii
Automatic Flatbed Die Cutter, MWZ 2100Nii
Automatic Flatbed Die Cutter, MWZ 2100Nii
Automatic Flatbed Die Cutter, MWZ 2100Nii
Request a Quote
Technical Parameters
Machine model MWZ 2100 Nii
Max. sheet size 2100 x 1520mm
Minimum sheet size 650 x 500mm
Max. cutting size 2080 x 1500mm
Cutting force Up to 400tons
Max. mechanical speed 3000 sheets per hour
Stock range Corrugated sheet 1-9mm
Height of cutting rule 23.8mm
Pressure adjustment ±1mm
Cutting precision ±0.5mm
Min. front waste 8mm
Chase size 2110x1524mm
Power consumption (without air pump) 47.6kW // 380V, 3-PH, 50 Hz
Machine dimensions Length: 9500mm
Width: 5560mm
Height: 2600mm
Machine weight 34 Tons
Machine Details
  • Standard Lead Edge Feeder
    • Lead edge feeder provides fast and precise sheet feeding.

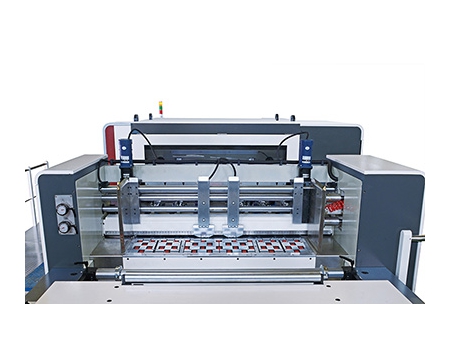

    Feeding Table
    • Left and right side push lays ensure accurate alignment and power registration.

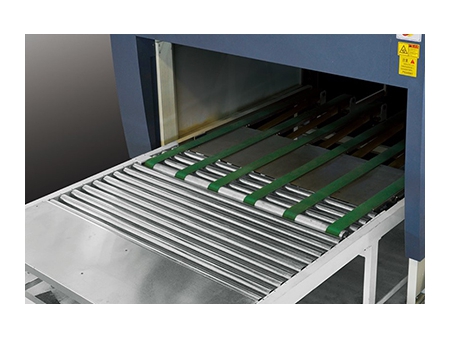

    • Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.
  • Die Cutting Section
    • Central positioning system allows fast job changeover and easy machine set-up.
    • Independent automatic self-lubrication system ensures smooth running and reduces maintenance job.
    • Advanced cam indexer features torsion clutch for the protection against overload.
  • Stripping Section
    • Central positioning system allows fast job changeover and simplifies stripping die set-up.
    • Heavy duty double action stripper efficiently removes waste, male and female stripping tools can accommodate various stripping tasks.
    • Front waste separator removes trim waste and transfers it to the machine drive side by conveyor belt.

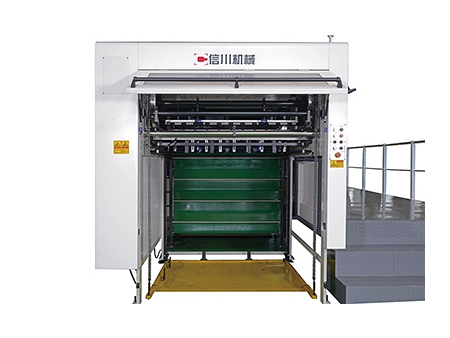

  • Delivery Section
    • Non-stop pallet delivery system ensures continuous production, with height increased by 300mm.
Applications

Our MWZ 2100Nii automatic flatbed die cutter is well suited for cutting cardboards and corrugated boards of packaging boxes and carton boxes.
