Flatbed Cutter
Request a Quote
- Acrylic
- Aluminum Composite
- POP Display Recycle Board
- PVC Sheet Forex
- Gasket Materials
- Textiles Banners Fabric
- 3-Layer Corrugated Sheet Cutting

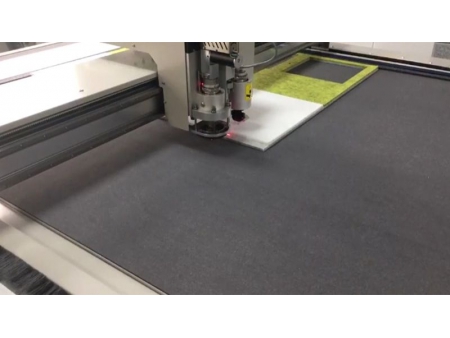

- Felt Panel Cutting

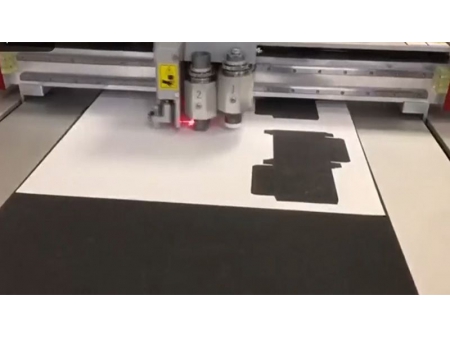

- Paper Box Cutting

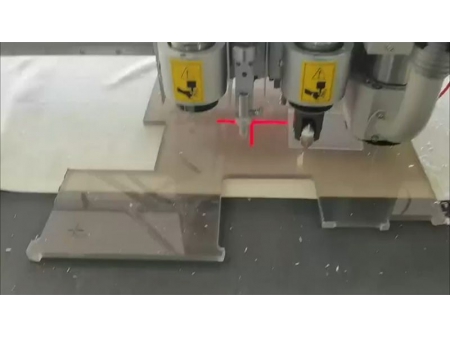

- 1cm Acrylic Cutting
- Banner Material Cutting
- PP Paper Cutting
- Card Paper Cutting
- Aluminum Composite Panel Cutting
- KT Board Cutting
- Model: FG1008-B
- Fast cutting, high accuracy, supporting through-cutting and half-cutting;
- Easy-to-use control software, customizable to meet customer’s cutting needs;
- Exclusive material hold-down technology, strong holding force, low noise level and reduced energy consumption;
- Intelligent, humanized, digital cutting;
Specifications
- Max. cutting area: 1000*800mm
- Tools: rotary cutting knife, CCD, plotting pen, creasing wheel
- Data reading: barcode or QR code reading
- Working table: fixed table
- Max. cutting speed: 1000mm/s
- Applicable material: PP paper, cardstock paper, self-adhesive sticker, etc.
- Cutting thickness: ≤2mm (depending on material to be cut)
- Repeatability: ≤0.1mm
- Interface: LAN
- format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
- Voltage: 220V
- Pump power: 2.2KW
- Machine dimension: 1753*1434*1135mm
- Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
