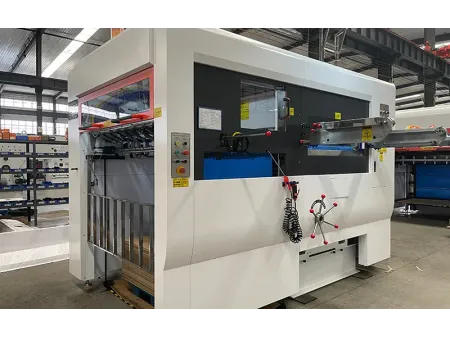

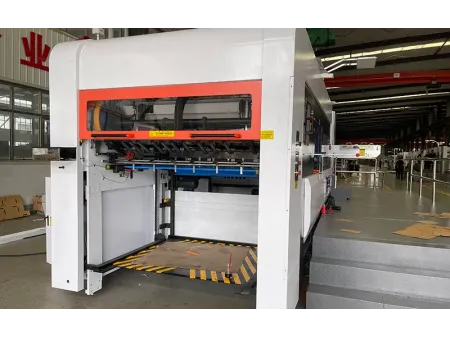

Semi-Automatic Flatbed Die-Cutter
Request a Quote
Flatbed die-cutting and creasing machine with stripping station for corrugated board converting
Structure
Stripping Station
Die-Cutter
Electrical Cabinet
Chain Drive and Conveyor Section
Die-Cutting Station
Motor
Main Components
Feeding and Output Section
- Maximum stack height: up to 1400 mm at the feeder and up to 1250 mm at the delivery.
- A center-mounted display screen allows operators to easily monitor rear-side operations.
- The pre-stacked system and specially designed pneumatic lift table greatly reduce setup time.
- A non-stop sampling system enables board inspection while the equipment remains in operation.
Main Unit
- Equipped with an automatic centralized lubrication system, with main-chain lubrication controlled through the HMI.
- The patented shock-absorption system extends the machine’s service life and increases cutting pressure.
- An intermittent gearbox ensures precise registration and reduces impact on the gripper bar system.
Die-Cutting and Conveying System
- The die-cut chase is locked in place by a pneumatic clamping system for accurate positioning.
- The cutting plate slides in and out on an air-float system for easy handling.
- An electric-powered clutch stabilizes the chain during emergency stops at high speed.
- Main and auxiliary chains receive scheduled lubrication controlled via PLC.
- A protective cutting station window helps keep the interior clean.
- The machine uses a lightweight and durable five-piece aluminum gripper bar system, paired with Renold (UK) or IWIS (Germany) chains, ensuring precise and reliable sheet transport.
Technical Specifications
| Model | | | | |
| Max. paper size, mm | 1320x980 | 1510x1120 | 1670x1200 | 2100x1600 |
| Min. paper size, mm | 350x450 | 450x500 | 500x550 | 600x600 |
| Max. die cutting size, mm | 1300x960 | 1490x1100 | 1650x1180 | 2050x1550 |
| Min. gripper edge size, mm | 8 | 8 | 8 | 10 |
| Max. die cutting pressure, N/cm² | 350 | 380² | 400 | 500 |
| Processable paper-cardboard, g/m² | 200-2000 | 200-2000 | 200-2000 | 200-2000 |
| Processable paper-corrugated board, mm | 10 (max. thickness) | 10 (max. thickness) | 10 (max. thickness) | 10 (max. thickness) |
| Max. die cutting speed, sheets/h | 5000 | 5000 | 4200 | 3800 |
| Max. feeding pile height, mm | 1400 (above floor level) | 1400 (above floor level) | 1400 (above floor level) | 1400 (above floor level) |
| Max. collecting pile height, mm | 1250 (above floor level) | 1250 (above floor level) | 1300 (above floor level) | 1300 (above floor level) |
| Total power, kW | 15 | 15 | 20 | 25 |
| Machine weight, T | 14.5 | 17 | 21 | 30 |
| Machine dimensions (LxWxH), mm | 4200x4250x2250 | 4500x4300x2250 | 5200x4950x2250 | 6500x5050x2400 |
