ZGY-6000

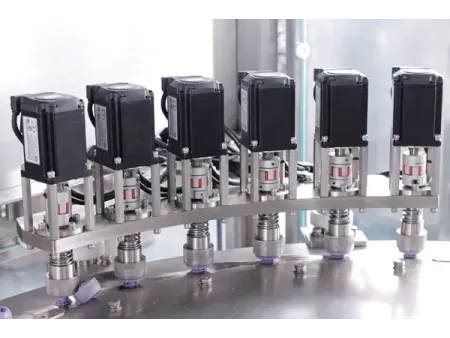

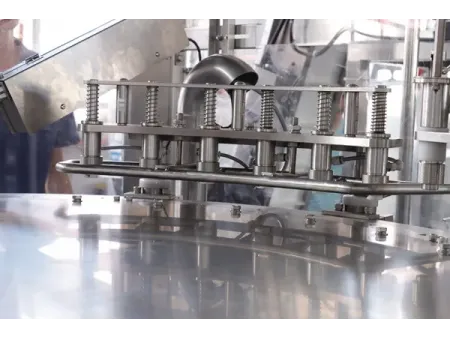

The spouted pouch filling and capping machine provides solutions for filling and sealing premade stand-up or shaped pouches with spouts. Built with core components from internationally recognized brands such as Siemens, it combines precise servo control with a stable mechanical handling system. From pouch feeding and indexing to volumetric filling, cap placement, tightening, and finished pouch discharge, all steps are completed automatically within one integrated process. The system is engineered for precise filling results, secure capping, and smooth operation, making it suitable for production lines that require reliable spouted pouch packaging.

Specifications
Model ZGY-6000
Max. pouch size (W × H) 85mm×150mm
Maximum filling volume 150ml
Packaging speed ≤150 poucher/min
Dimensions (L × W × H) 2970mm×3300mm×2500mm
Net weight 1500kg
Optional Functions

Zipper opening

Pouch hole punching

  • Sombrero hole (butterfly hole)
  • Round hole
  • Special-shape punching
  • Arc hole / Curved slot hole
  • Euro hole

Coding options

  • Hot stamp coding
  • Inkjet printing
  • Laser marking

Sealing patterns

  • Grid pattern
  • Dotted pattern
  • Plain/flat pattern
  • Vertical rib pattern
Details
Customer Case Studies

Hunan Biotechnology is a biotech company focused on wellness beverages and powdered drink products. In 2024, they introduced the spouted pouch filling and capping machine. The pouch handling equipment has been well received and operates reliably in daily production.

Startup beverage brands prioritize packaging cost, visual consistency, and scalability, allowing them to build brand presence quickly while expanding production capacity as demand grows. Our spouted pouch filling and capping machine is an excellent solution for such requirements.
