The sauce filling machine can work with sauces of various viscosity. With stainless steel-constructed frames and contact parts and high-quality components, the filling machine is suitable for the filling of liquids of higher viscosity than sauces and low-viscosity water-thin liquids, such as ketchup, hot sauce, soy sauce.

Applicable products

A wide range of bottled sauce, such as ketchup, hot sauce, soy sauce.

Applications

Our sauce filling machine is mainly used in food processing industry, especially for sauce, dressings, etc.

Features
  • Drip-proof mechanism at the suction nozzles to ensure clean filling with zero droplets.
  • Applicability to sauce with texture.
  • Durable stainless steel-constructed frames and contact parts to ensure proper hygiene and food safety.
How it works

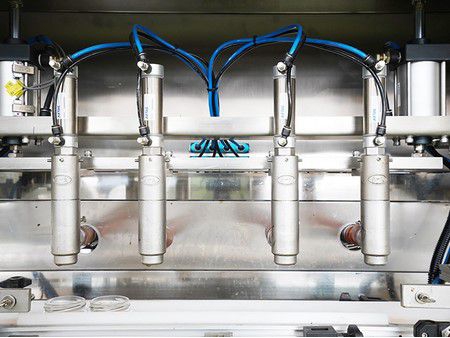

The sauce filling machine uses a cylinder and a piston to create a highly accurate volumetric fill. Different fill levels can be achieved by lengthening or shortening the stroke of the piston, and the weight of filled sauce will be consistent from cycle to cycle.

Components

Stainless steel frame, storage box, piston cylinder, piston, filling head, PLC, touch screen, photoelectric sensing system, conveyor.

Specifications
Filling speed 25-30bpm (6 heads) (the number of filling heads can be increased or decreased to adapt to required productivity)
Filling capacity 100-400ml
Power supply 380V/50Hz, 1.2-2.0 kW
Air pressure 0.4-0.6Mpa
Dimensions 2000×1300×1900mm
