Main Technical Specification
| Model | ZBS-320B |
| Printing speed | 50m/min. |
| Printing color | 1 color |
| Max. width of paper | 320mm |
| Max .printing width | 310mm |
| Max. unwinding/rewinding diameter | 600mm |
| Printing length | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimension | 2m×1.2m×2m |
| Machine weight | About 1250kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-320B |
| Standard | 1-6 colors |
| Productivity | 15sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
1.Web guiding system
2.UV dryer
3.Extra IR dryer
4.Corona treater

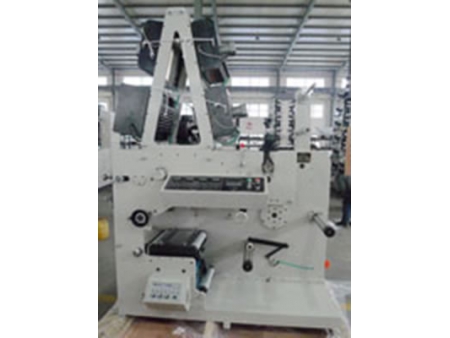

Machine Photos
- Single color with 1UV
- Single color with 1UV
- Single color with 1UV and 3 hot air driers
- Die cutting station
- Web guiding system
- UV dryer
Main Technical Specification
| Model | ZBS-320 |
| Printing speed | 50m/min. |
| Printing color | 2colours |
| Max. width of paper | 320mm |
| Max .printing width | 310mm |
| Max. unwinding /rewinding diameter | 600mm |
| Printing length | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimensions | 2.1m×1.2m×2.1m |
| Machine weight | About 1750kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-320 |
| Standard | 1-6 colors |
| Productivity | 15sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
1.Web guiding system
2.UV dryer
3.Corona treater

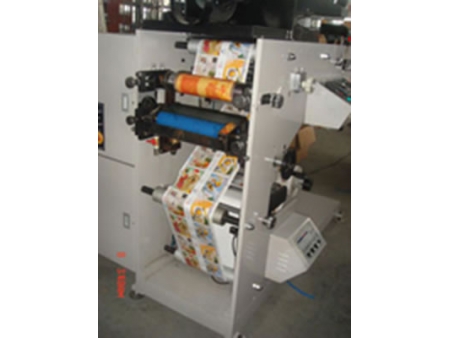

Machine Photos
- 2 colors with 2UV
- 2 colors with 2UV
- Die Cutting Station
- Web Guiding System
- UV Dryer and Controller
- UV Dryer and Controller
Main Technical Specification
| Model | ZBS-320 |
| Printing speed | 50m/min. |
| Printing color | 3 colours |
| Max. width of paper | 320mm |
| Max .printing width | 310mm |
| Max. unwinding /rewinding diameter | 600mm |
| Printing length | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimensions | 2.1m×1.2m×2.1m |
| Machine weight | About 1850kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-320 |
| Standard | 1-6 colors |
| Productivity | 15sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
1.Web guiding system
2.UV dryer
3.Separate unwinder shelf (diameter up to 900mm)
4. Corona treater
Machine Photos
- Die cutting station with import bearing
- Web guiding system
- UV dryer and controller
- Unwinder with corona treater
