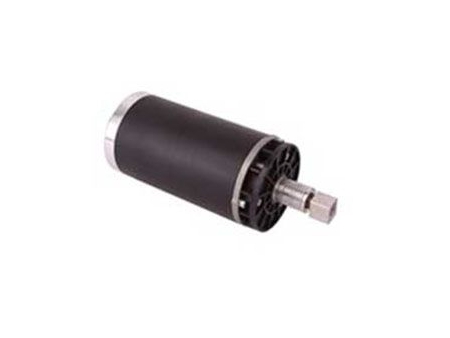

500-750W Drive Motor, PMDC Brushless Motor GF057AQH
Request a Quote
View All: http://motors-manufacturer.com/2-6-500-750w-drive-motor-pmdc-brushless-motor-gf057aqh.html
Your Motion
Application: E-treadmill
Technical Specifications
| Rated Power (W) | 500 | 750 |
| Max. Power (W) | 1000 | 1500 |
| Rated Voltage(V) | 110/220 | 110/220 |
| No-load Current(A) | ≤0.5 / 0.3 | ≤0.7 / 0.5 |
| No-load Revolution (RPM) | 3700 | 5100 |
| Rated Torque (N•m) | 1.9 | 1.9 |
| Max. Torque (N•m) | 8.0 | 8.0 |
| Rated Revolution (RPM) | 2500 | 3700 |
| Rated Current(A) | 4.5/2.5 | 7/3.5 |
| Rated Efficiency (%) | ≥70 | ≥70 |
| Working Cycle (min.) | S1 | S1 |
| Insulation Class | F | F |
| Protection Level | IP20 | IP20 |

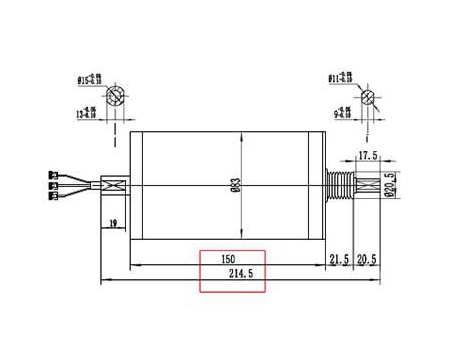

| Length (L/mm) | 150 | 150 |
| Treadmill Speed (km/h) | 8.0 | 12.0 |
Note: we can customize any BLDC drive motors according to your application requirements and working conditions.
