AS-P15 Semi-automatic Labeler (Top Labeling /with Roller to Reduce Bubbles) Manufacturer

AS-P15 Semi-automatic Labeler (Top Labeling /with Roller to Reduce Bubbles)

Request a Quote

View All: http://labelingsolution.com/2-6-as-p15-semi-automatic-labeller.html

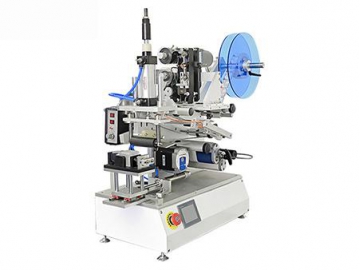

The semi-automatic labeler is a roller style labeling machine designed for labeling a variety of flat and arc surfaces. It applies a label to an uneven surface simply by changing the smoothing device. With the use of different jigs, the semi-automatic labeler applies labels to irregular shaped products.

A ribbon printer and industrial inkjet printer are optional. They are used to print the production date and batch number on the label so as to realize an integration of labeling and printing applications.

Applications

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
Applicable products: products requiring a label on a flat, cambered, round, concave and convex surface.
Applicable industries: cosmetics, food, toys, daily chemicals, electronics, pharmaceutical

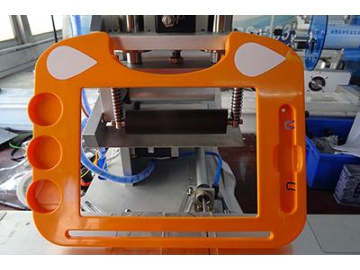

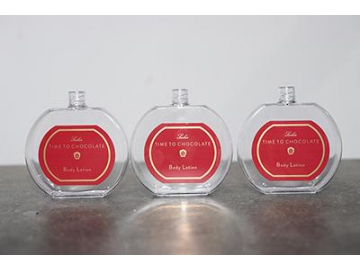

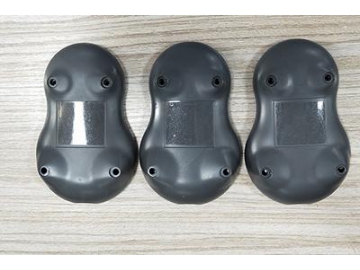

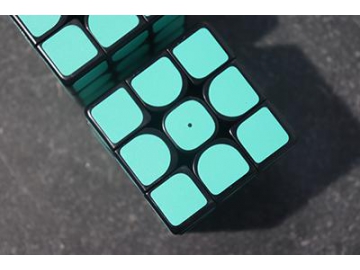

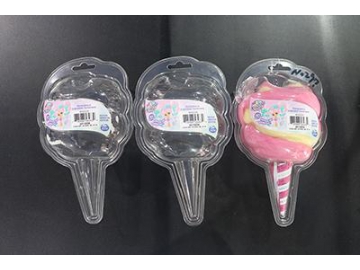

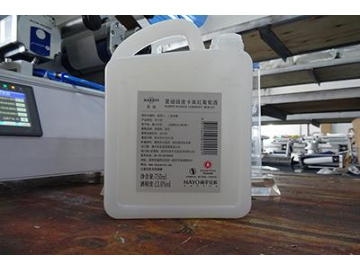

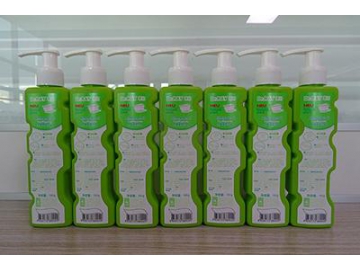

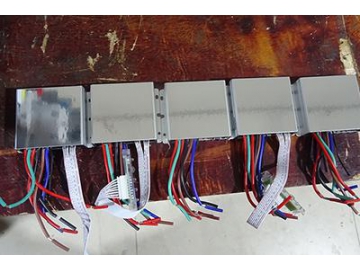

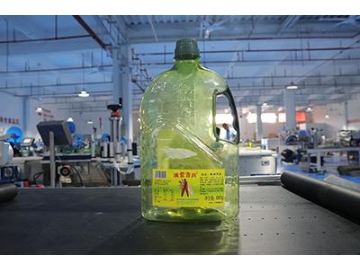

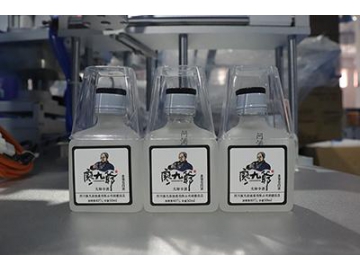

Samples

Specification

Model	AS-P15
Label stop accuracy	±0.5 mm
Production speed	15-30 pcs/min
Product length	20mm～300mm
Product width	20mm～40mm
Product height	0.2mm～120mm
Label length	15mm～100mm
Label roll inside diameter	Φ76mm
Label roll outside diameter	Φ280mm
Dimensions (length x width x height)	850mm x 410mm x720mm
Weight	48Kg

Details of Top Labeler

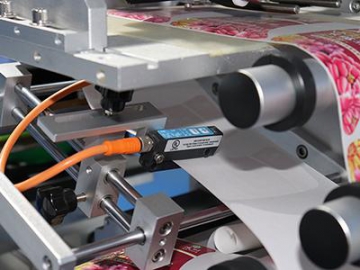

Photoelectric sensor
The labeling system is equipped with a photoelectric sensor provided by Sick, and features an exceptional precision and reliability.

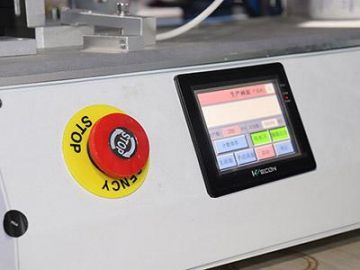

Touch screen:
The touch screen is PLC controlled with an easy to use human to machine interface. With just a tap of the screen, users can easily set parameters or carry out a variety of functions.

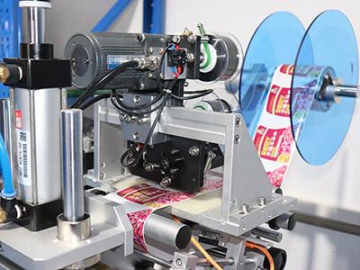

Coding machine:
The coding machine prints information such as batch numbers on the label during the labeling process.

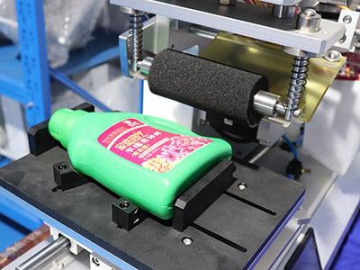

Smoothing device and feeding system:
The smooth device is equipped with a roller to eliminate the bubbles. The manual feeding system is efficient and convenient to use.
