AS-P12 Semi-Automatic Labeler (Top Labeling)
Request a Quote
The high precision semi-automatic labeler applies a label to a flat, arc, or concave surface of electronic components and digital products, including SD cards, cell phone batteries, FPC, phone chargers and more.
Applications
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
- Applicable products: products requiring a label on a flat, cambered, round, concave or convex surface.
- Applicable industries: food, toy, daily chemicals, electronics, pharmaceutical, hardware, plastic, printing

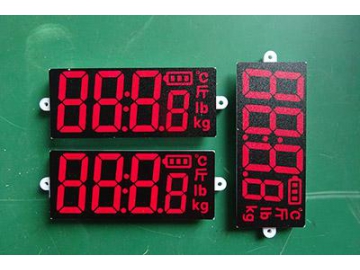

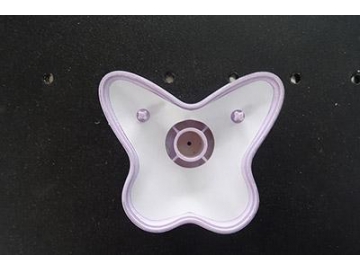

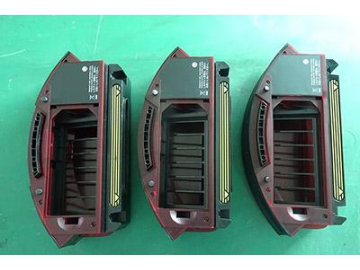

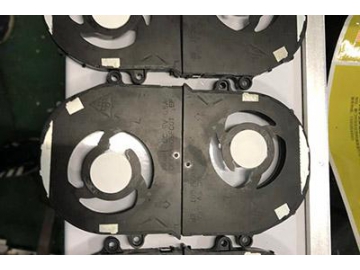

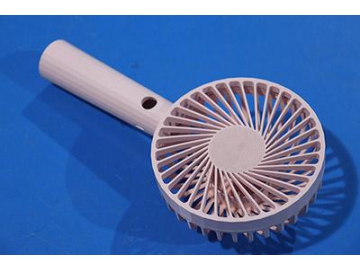

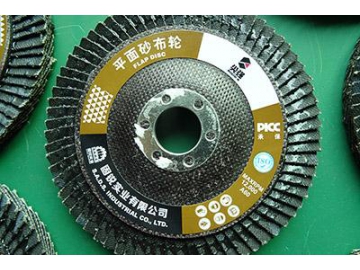

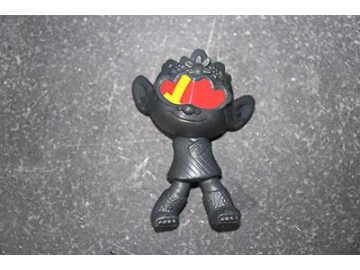

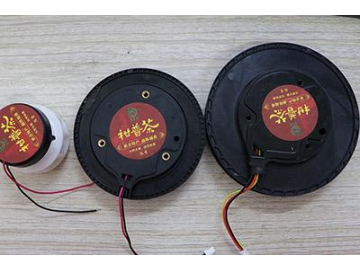

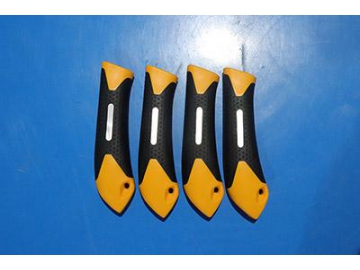

Samples
Specification
| Model | AS-P12 |
| Label stop accuracy | ±0.2 mm |
| Production speed | 15-30 pcs/min |
| Product length | 20mm～200mm |
| Product width | 20mm～180mm |
| Product height | 0.2mm～150mm |
| Label length | 10mm～60mm |
| Label roll inside diameter | Φ76mm |
| Label roll outside diameter | Φ280mm |
| Dimensions (length x width x height) | 550mm x 420mm x760mm |
| Weight | 67Kg |
Details of Top Labeler

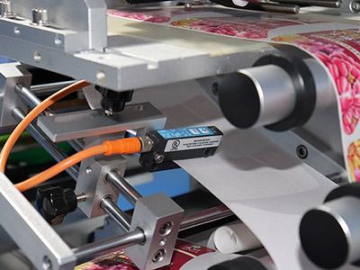

- Photoelectric sensor

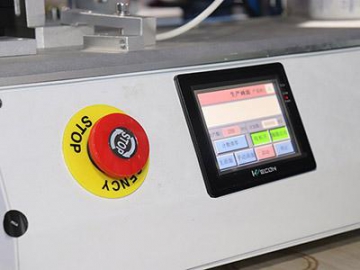

The labeling machine is equipped with a photoelectric sensor produced by Sick, and features an exceptionally high precision and reliability. - Touch screen:

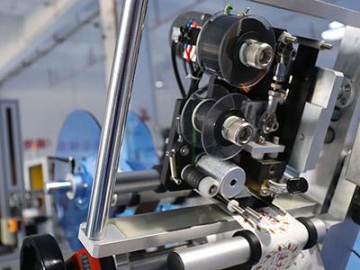

The touch screen is PLC controlled with an easy to use human to machine interface. With just a tap of the screen, users can set various functions and parameters according to their needs. - Coding machine:

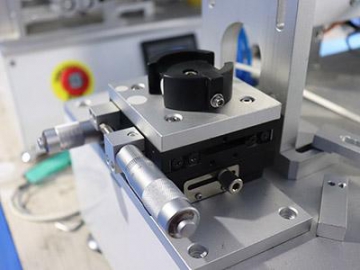

The coding machine prints information such as the batch number on the label during the labeling process. - High precision label adjusting mechanism:
it is easy to adjust and ensures a high label stop accuracy of up to ±0.2mm.
