Request a Quote

The semi-automatic labeler applies a full or partial wrap to cylindrical and tapered bottles. This tabletop labeler features a production speed of up to 40 pieces/minute, with an optional circumferential positioning detection device for assisting the machine in applying a label to a designated position on a circular surface. The ribbon printer and industrial inkjet printer are also optional for printing information such as batch numbers on the label in order to simplify packaging procedures and improve production efficiency.

Applications
  • Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
  • Applicable products: wine bottle, round bottles such as cosmetic bottles
  • Applicable industries: food, pharmaceutical, cosmetics, daily chemical, electronics, hardware, plastic

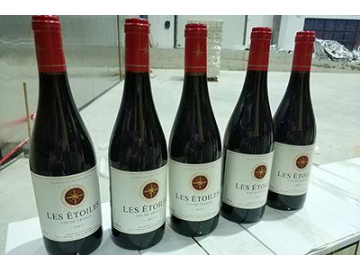

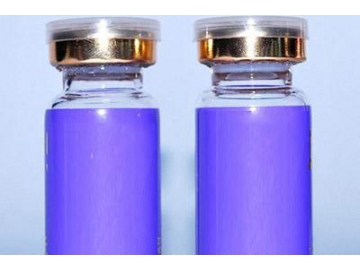

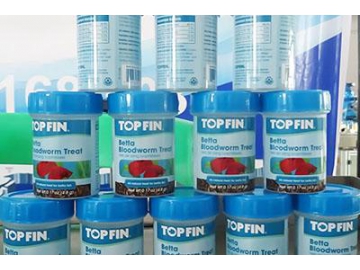

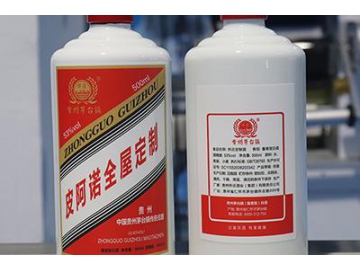

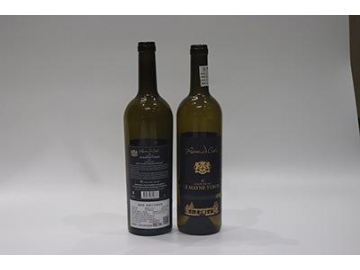

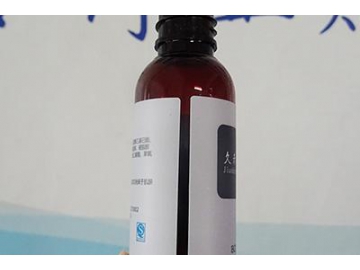

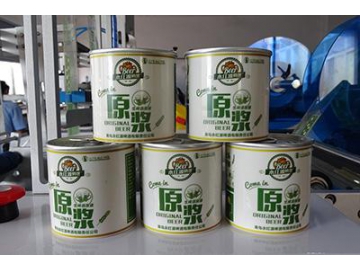

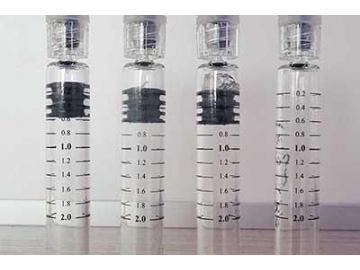

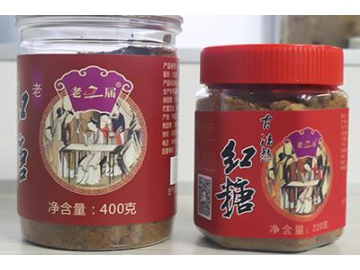

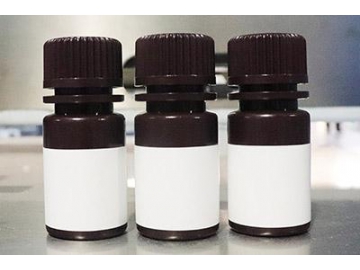

Samples
Specification
Model AS-C11
Label stop accuracy ±0.5mm
Production speed 20-40 pcs/min
Product diameter φ25mm~φ160mm
Label length 15mm~380mm
Label roll inside diameter Φ76mm
Label roll outside diameter Φ280mm
Dimensions (length x width x height) 920mm x 420mm x 500mm
Weight 35Kg
Details of Round Bottle Labeler

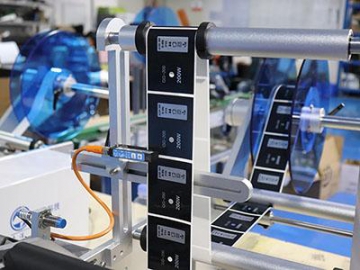

  • Photoelectric sensor
    The labeling machine is equipped with a photoelectric sensor made by Sick and features an exceptionally high precision and reliability.

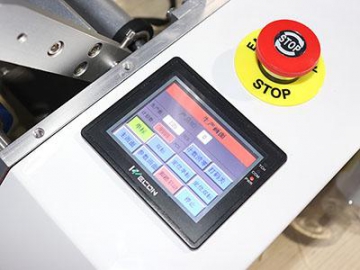

  • Touch screen:
    The touch screen is PLC controlled, with an easy to use human to machine interface. Simply tap the screen to determine a variety of functions and parameters for your product needs.

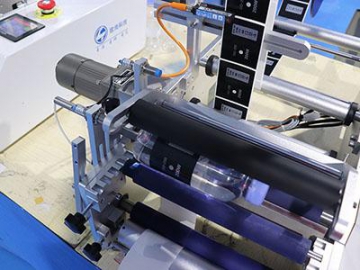

  • Automatic smoothing device:
    It uses an automatic smoothing device with a cylinder to eliminate any bubbles.
