Automatic Pallet Inserter System
Request a Quote
Automatic pallet inserter system is intended to automatically load corrugated cardboard stacks on pallets made of wood, plastic or metal. It is an ideal solution for the automatic loading of cardboards from cardboard line to pallets.
Our automatic pallet inserter system is composed of a pallet inserter conveyor and a set of pneumatic stop gate. After wooden or plastic pallets are manually placed in the designated area for unloading, and then the pallet inserter conveyor either manually or automatically places the cardboard stacks on the pallets, after which the loaded pallets are transferred to downstream processing sections using forklifts or other material handling equipment.

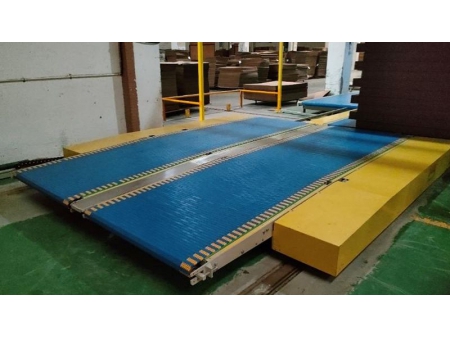

Specifications of Pallet Inserter Conveyor
- Drive system: motor 2.2kW
- Load capacity: 2000kg
- Applicable cardboard line: width of cardboard line 1.8m/2.2m/2.5m/2.8m (customizable)
- Cardboard sheet length: 2.5m/2.8m
- Usage: corrugated cardboard conveying and unloading
Features
- Modular structure, fast installation;
- Stable and quick unloading in an orderly manner;
- Less consumption;

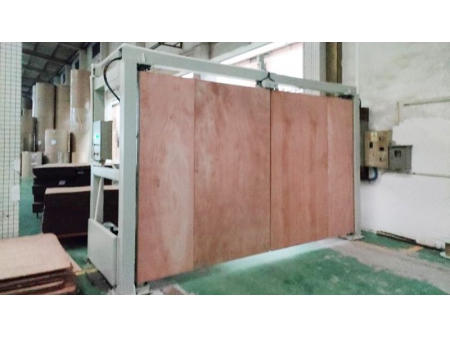

Specifications of Pneumatic Stop Gate
- Mainly constructed with 140*140 square tube and 18mm thick plywood;
- Drive system: pneumatic;
- Dimensions are suited to the size of pallet inserter conveyor
