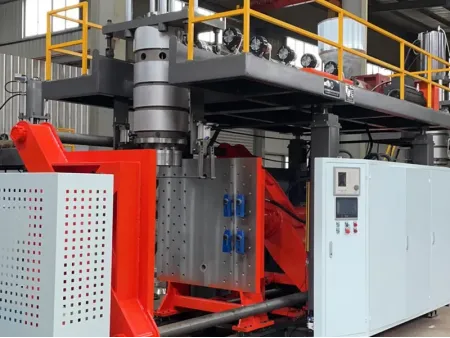

Chemical Drum Extrusion Blow Moulding Machine
Request a Quote
Our chemical drum extrusion blow moulding machines are specifically designed for producing large plastic drums for storing and transporting chemicals. These drums require high strength, corrosion resistance, chemical resistance, and leak-proof characteristics, which our machines meet perfectly.
Key Parameters
- Container volume: 120-1000L
- Clamping force: 500-1700kN
- Accumulator: 12-36L

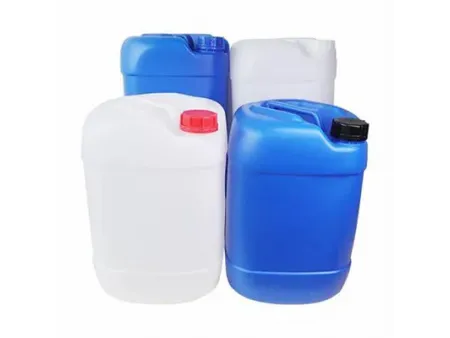

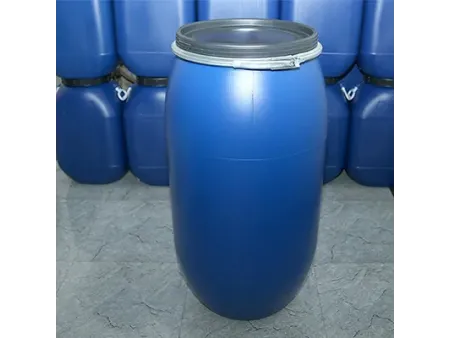

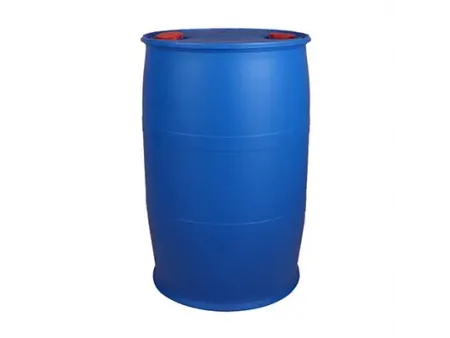

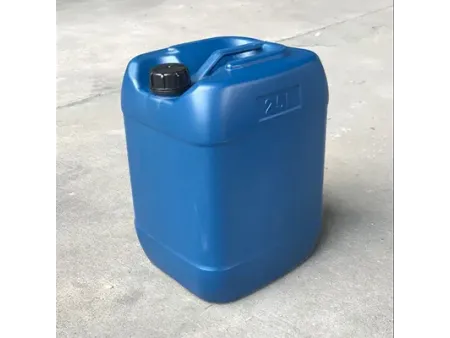

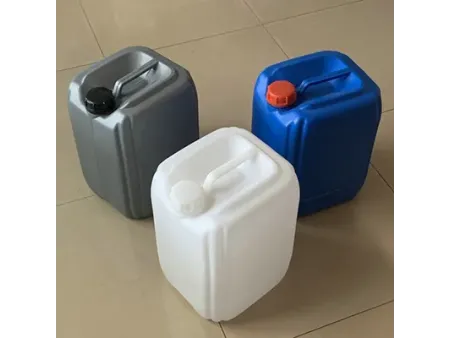

Samples of Plastic Bottles & Containers
Features
Our machines allow for continuous production, ideal for large-scale production.
The plastic drums produced by our machines have stable shapes and sizes with consistent quality.
The precise control of plastic usage helps to reduce waste in production.
We offer various models, allowing customers to choose machines based on their production needs.
We provide high-quality moulds that ensure product precision and surface quality.
Equipped with advanced control systems, our machines enhance production efficiency and product consistency.
We offer excellent after-sales service and spare parts
Specifications
| Basic Information | Max. container volume | 1000L |
| Machine dimensions (L×W×H) | 6.5×3.5×5m | |
| Machine weight | 16T | |
| Power consumption | 180kW | |
| Average consumption | 55-60kW/h | |
| Plasticizing System | Screw Diameter | 100mm (alloy screw for increasing durability) |
| L/D ratio | 27:1 (efficient mixing head to enhance plasticizing capacity) | |
| Plasticizing capacity | 220kg/h (HDPE) | |
| Number of heating zone | 5 zones | |
| Screw heating power | 55 kW/zone | |
| Screw cooling | Automatic blower cooling (5 sections) | |
| Extruder motor power | 55kW (three-phase asynchronous motor with variable frequency speed control) | |
| Motor brand | DASU | |
| Speed reducer | ZLYJ-250 | |
| Reducer cooling | Oil cooler | |
| Lifting | 4 point synchronous lifting, hydraulic drive | |
| Accumulator volume | 16L | |
| Accumulator cooling | Water cooling (reducing temperature and extending seal life) | |
| Clamping System | Overview | Fixed open/close mould mechanism, diagonal double tie rod with single-cylinder central locking, large mould space, mould fixed with clamp plates for easy disassembly, linear rolling guide |
| Platen size (W×H) | 1100×1100mm | |
| Max. mould size (W×H) | 1000×1500mm | |
| Space between platens | Min. 500mm Max: 1500mm | |
| Platen moving method | Linear rail | |
| Linear rail brand | HIWIN | |
| Clamping force | 1000 kN | |
| Clamping cylinder | Booster cylinder (small diameter, fast speed, 3 times the pressure of a regular oil cylinder) | |
| Safety photoeye sensor | IR monitoring (timely protection and safety guarantee) | |
| Moulding cooling | Water cooling, 8 in/8 out (multiple inlets/outlets and good mould cooling effect) | |
| Hydraulic System | ||
| Overview | Our patented energy-saving hydraulic system with imported hydraulic valves and pumps, offering stable and precise movements, long service life, and good responsiveness | |
| System pressure | 14MPa /140kg | |
| Servo motor | Haitian servo motor 22kW | |
| Servo drive | Haitian servo drive 22kW | |
| Servo motor power | 22 | |
| Hydraulic pump | 80cc | |
| Hydraulic solenoid valve | Yuken | |
| Pump type | Screw pump | |
| Hydraulic oil pipe | 4-layer pipe with maximum bearing capacity of 350kg /35Mpa | |
| Electrical System | Overview | Japanese imported PLC, with stable programming, precise actions, and comprehensive function selection, suitable for all current market products |
| PLC | Delta Electronics | |
| Output module 4DA | Delta Electronics (precise control of hydraulic actions and extruder motor output) | |
| Temperature control module | PID temperature controller (accurate temperature control, digital module display) | |
| Solid state voltage regulator | Precise output and long service life, with no sparks | |
| Touch panel | Delta Electronics (11-inch, color display, bilingual interface) | |
| Inverter | 55 kW | |
| Contactor | Solid state 100A | |
| Air switch | Schneider | |
| 24V power supply | Omron | |
| Linear position transducer | Gefran (precise control of preform length and feed amount) | |
| Servo position transducer | Gefran (precise control of die opening for accurate product wall thickness control) | |
| Wall thickness controller | 100-point wall thickness controller | |
| Wall thickness servo valve | Atos | |
| Clamping position transducer | Gefran | |
| Pneumatic System | Overview | Imported pneumatic components from Taiwan, with precise regulation and long service life |
| Pneumatic air filter/regulator combination | AirTAC | |
| Air pressure regulator | AirTAC | |
| Air solenoid valve | AirTAC | |
| Air throttle valve | AirTAC | |
| Hydraulic Station for Wall Thickness | Overview | Mainly used to control the opening of the die, with stable pressure and flow for precise control of product thickness and weight |
| Pump motor brand | DASU | |
| Pump motor power | 5.5kW | |
| Pump type | Hydraulic piston pump | |
| Pump brand | Yuken |
