Vacuum Rubber Molding Press
Request a Quote
Rubber Press Machine, Rubber Vulcanizing Press, Rubber Press, Rubber Hydraulic Press, Rubber Vulcanizer

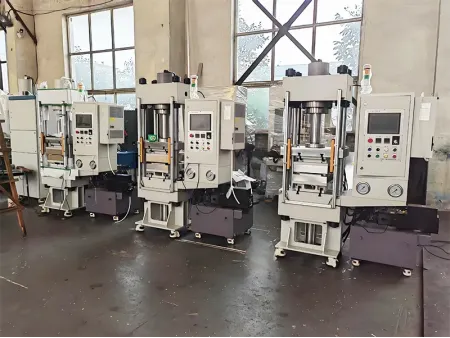

The vacuum rubber molding press is used in the production of auto parts, rubber fasteners, cookware, industrial rubber and a wide range of other rubber products.
Features
- Dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously.
- Front mold is suitable for variety 2-layers or multi-layers molds.
- Lift and clamping mold speed can be adjustable, accuracy and reliability.
- Out-In mold positioning accuracy
- Vacuum chamber can reach 650-700mmHg within 5 seconds.
- Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure.
- Machine structure has gone through pressure and strain analysis. It has a long service life.
- Special designed hot plate with a uniform distribution of temperature to ensure the molding quality.
Technical Parameters
| Mold-locking force | 200 TON |
| Max.working pressure | 210 kg/cm2 |
| Main engine piston diameter | 360mm |
| Max.stroke | 250mm |
| Opens the files most greatly | 300mm |
| Motor power | 18.3kwx2 |
| Thermo plate dimension | 505×510mm |
| Mold frame plate size | 500×500mm |
| Mold use thickness | 50~150mm |
| Main engine horsepower | 15HPX6P(11.2KW) |
| Vacuum horsepower | VC-75(1.85KW/50Hz) |
| Fuel tank volume | 700L |
