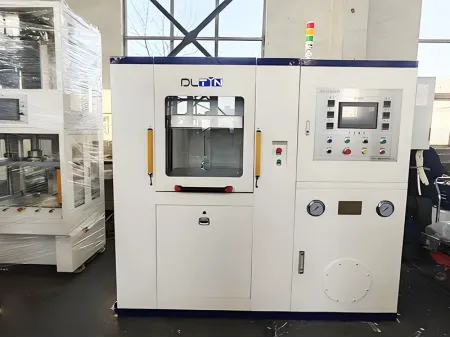

HSV Vacuum Press
Request a Quote
Slab Side Press for Molding and Lamination
Benefits
- The vacuum press supports automatic demolding and ensures a high productivity.
- It features a simple structure and easy maintenance.
- This vacuum press supports both automatic and manual operation.
- The vacuum hot forming effectively reduces formation time and improves productivity.
Specifications
| Capacity (tons) | 150 | 200 | 250 | 300 |
| Platen Size (mm) | 460*460 | 520*530 | 560*600 | 600*650 |
| Cylinder Bore (mm) | Ø300 | Ø355 | Ø400 | Ø450 |
| Stroke (mm) | 300 | 350 | 400 | 450 |
| Horsepower (HP) | 7.5 | 10 | 10 | 10 |
| Cylinder Stroke (mm) | 500 | 550 | 580 | 630 |
| Power (KW) | 11.2 | 13.2 | 15 | 18 |
| Weight (KG) | 5000 | 7500 | 9500 | 12000 |
| Dimension (mm) | 2800*1600*1600 | 300*1800*1800 | 3300*1900*1900 | 3600*2000*2000 |
