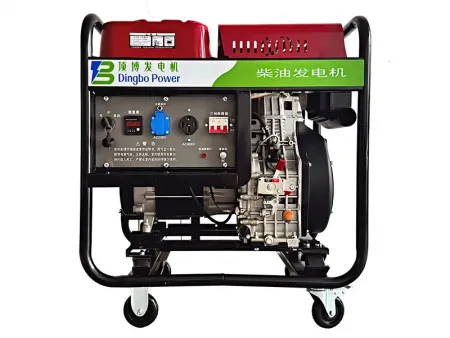

Air-Cooled Open Frame Diesel Generators (2 Cylinder)
Request a Quote
10kW-20kW Diesel Genset
10kW-20kW Diesel Genset
Specifications
| Genset Model | | | | | |
| Alternator | Excitation Mode | Brushed, self-excitation, AVR (automatic voltage regulation) | |||
| Prime Power (kW) | 12 | 15 | 18 | 10 | |
| Standby Power (kW) | 13 | 16 | 20 | 10.5 | |
| Rated Voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 | |
| Frequency (Hz) | 50 | 50 | 50 | 50 | |
| Phase | Single phase Three phase | ||||
| Power Factor (COSφ) | 1/0.8 | 1/0.8 | 1/0.8 | 1/0.8 | |
| Insulation Class | F | F | F | F | |
| Engine | Engine Model | KD292 | 2V95 | 2V98 | KD2V88 |
| Bore Size×Stroke (mm) | 92×75 | 95×75 | 98×88 | 88×72 | |
| Displacement (cc) | 997 | 1247 | 1326 | 836 | |
| Engine Type | 2 cylinder, air-cooled, direct injection | ||||
| Fuel Type | Diesel | ||||
| Oil Capacity (L) | 2.5 | 3.2 | 3.2 | 2 | |
| Starting System | Electric Start | ||||
| Genset | Fuel Tank (L) | 30 | 30 | 30 | 30 |
| Noise Level (dBA/7m) | 87 | 90 | 90 | 87 | |
| Dimension (mm) | 860×650×800 | 1100×700×790 | 1100×700×790 | 960×670×720 | |
| Weight (kg) | 202 | 236 | 248 | 186 | |
