Air-Cooled Open Frame Gasoline Generators (Single Cylinder)
Request a Quote
5kW/8kW/9kW Gasoline Genset

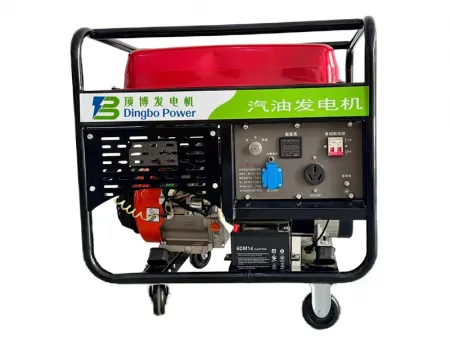

5kW Air-Cooled Gasoline Generators

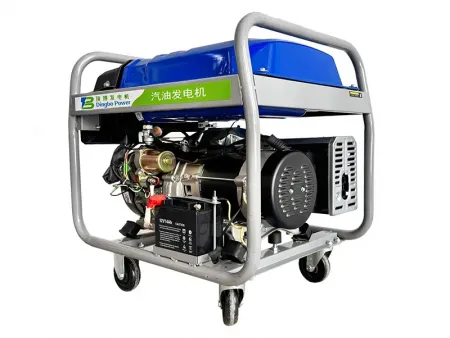

8kW/9kW Air-Cooled Gasoline Generators
Features
- The air-cooled open frame gasoline generator is equipped with a forced air-cooled, single-cylinder 4-stroke gasoline engine that ensures low emissions, stable performance, and high durability—suitable for various outdoor and emergency situations.
- This generator delivers consistent power with an all-copper alternator and integrated Automatic Voltage Regulator (AVR), ensuring stable output and reliable excitation even under fluctuating loads.
- Designed with a reinforced heavy-duty steel frame for durability and corrosion-resistant paint, making it sturdy and long-lasting. Comes standard with caster wheels for enhanced portability.
- The single-cylinder generator is integrated with an overload circuit breaker and a low oil level shutdown system to ensure safe and stable operation in demanding conditions.
- It is fitted with a specially tuned muffler system that effectively reduces noise output, making it more suitable for use in work zones, rural areas, or job sites with sound level requirements.
Specifications
| Genset Model | | | | |
| Alternator | Excitation Mode | AVR (automatic voltage regulation) | AVR (automatic voltage regulation) | AVR (automatic voltage regulation) |
| Rated Output Power (kW) | 5.0 | 8.0 | 9.0 | |
| Max. Output Power (kW) | 5.5 | 8.5 | 9.5 | |
| Rated Voltage (V) | 230 | 230 | 230 | |
| Rated Current (A) | 21.7 | 34.8 | 39.0 | |
| Max. Current (A) | 26.0 | 37.0 | 41.0 | |
| Rated Frequency (Hz) | 50 | 50 | 50 | |
| Phase | Single phase | |||
| Power Factor (COSφ) | 1.0 | 1.0 | 1.0 | |
| Insulation Class | F | F | F | |
| Engine | Engine Model | DH190FD | DH500 | DH550 |
| Bore Size×Stroke (mm) | 90×66 | 94×76 | 94×76 | |
| Displacement (cc) | 420cc | 500cc | 550cc | |
| Fuel Consumption (g/kWh) | ≤374 | ≤374 | ≤374 | |
| Ignition | Electronic ignition | |||
| Engine Type | 1 cylinder, 4-stroke, air-cooled | |||
| Fuel Type | 90# lead-free gasoline | |||
| Oil Capacity (L) | 1.1 | 1.1 | 1.1 | |
| Starting System | Electric Start | Electric Start | Electric Start | |
| Genset | Fuel Tank (L) | 25 | 40 | 40 |
| Battery | 12V-14AH maintenance-free battery | |||
| Noise Level (dBA/7m) | 75 | 80 | 80 | |
| Dimension (mm) | 716×531×570 | 745×590×645 | 745×590×645 | |
| Weight (kg) | 80kg | 98kg | 105kg | |
