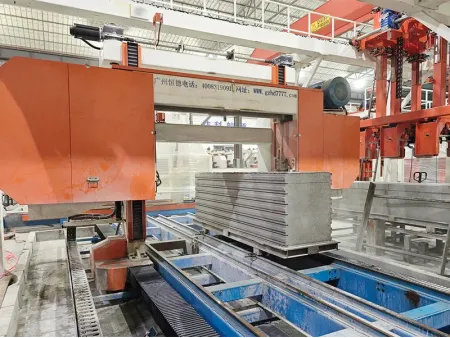

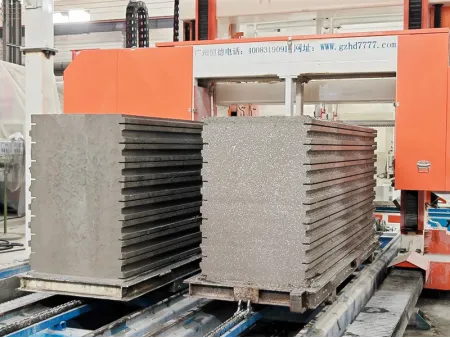

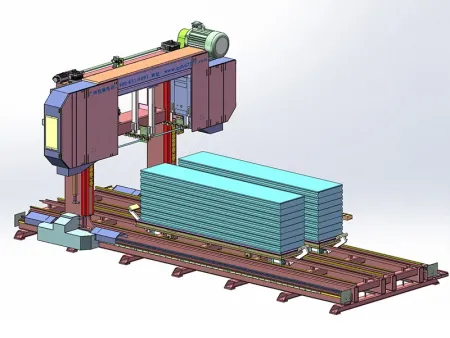

The double-track gantry horizontal concrete cutter is used for cutting lightweight wall panel products. It is equipped with one saw blade and completes the cutting of two concrete cakes in approximately 15 minutes. The dimensions of the concrete cakes are:
2.4m x 0.8m x 0.6m
3.0m x 0.8m x 0.6m (length can be customized)

Specifications
  • Model: HDSMPQ-001
  • Dimensions: 7000×4200×3000mm
  • Power: 30kW
  • Flywheel diameter: 900mm
  • Cutting speed: 10-12m³/h
  • Cutthing thickness: 10-900mm
Features
  • Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
  • Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
  • Labor-saving: one person can complete the cutting process.
  • Easy saw blade replacement: saw blades can be changed in 1-2 minutes.
  • Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
  • Superior performance: designed to handle semi-dry and wet concrete (0.5-2MPA) as well as hardened concrete (3.5-5MPA), delivering accurate and high-quality cuts in multiple conditions.
  • Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
