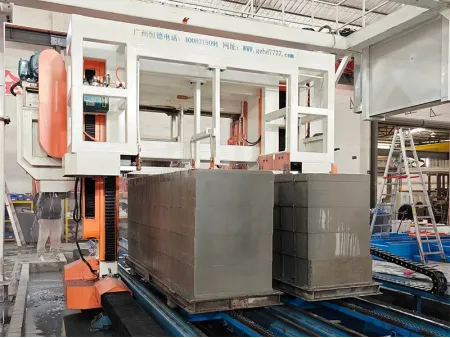

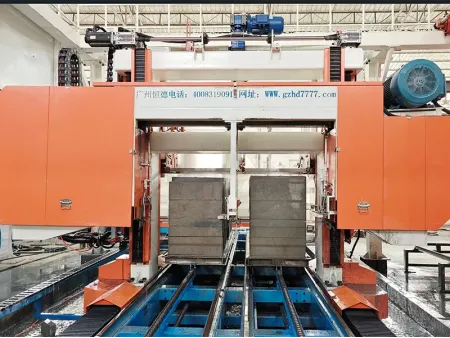

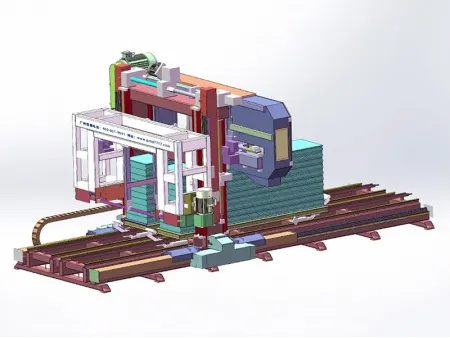

Double-Track Gantry Horizontal & Vertical Concrete Cutter
(Cross Cutter)
The double-track gantry horizontal & vertical concrete cutter (cross cutter) is equipped with one horizontal and one vertical saw blade, totaling two saw blades. This cutter independently completes the horizontal and vertical cutting of concrete blocks, cutting two concrete cakes simultaneously. The dimensions of the concrete cakes are:
3.0m x 0.8m x 0.6m with a single cutting volume of 2.4m³
Capacity: 6-7m³ cut per hour
4.2m x 1.2m x 0.6m with a single cutting volume of 6m³
Capacity: 13-15m³ cut per hour
- Model: HDPSYTJ-002
- Dimensions: 7000×4200×3350mm
- Power: 38.0kW
- Flywheel diameter: 600mm (vertical cutting)
900mm (horizontal cutting) - Cutting speed: 10-12m³/h
Note: Both horizontal and vertical cuts can be made to any size within the diameter range of the flywheel. Common widths include 100mm, 120mm, 150mm, 200mm, and 300mm, while common heights include 100mm, 120mm, 150mm, 200mm, 250mm, and 300mm.
- Dual cutting capability: one saw completes both horizontal and vertical cuts, reducing investment costs.
- Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
- Precision and aesthetics dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
- Labor-saving: one person can complete the cutting process.
- Easy saw blade replacement: saw blades can be changed in 1-2 minutes.
- Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
- Superior performance: efficiently cuts both semi-dry and wet concrete (0.5-2MPA) as well as hardened concrete (3.5-5MPA), providing reliable and precise cuts under diverse conditions.
- Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
