Double-Track Gantry Vertical Concrete Cutter with Rotary Table

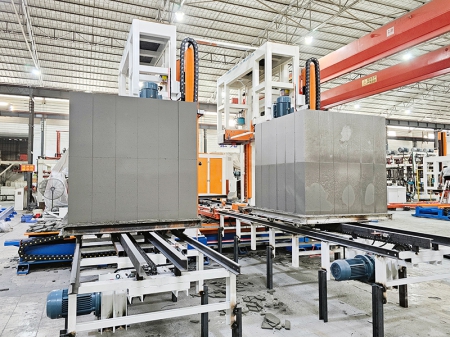

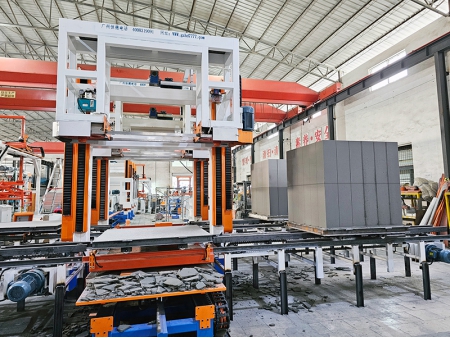

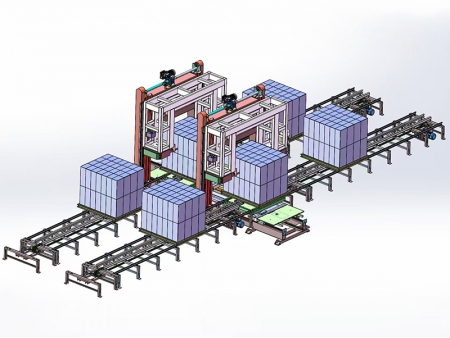

The double-track gantry vertical concrete cutter with rotary table is designed for high-efficiency cutting in lightweight concrete block production. It features two synchronized vertical cutting saws, allowing four moulded blocks each measuring 1.2m × 1.2m × 0.6m to be processed simultaneously, with a total cutting volume of up to 3.44m³ per cycle. The mould base includes a 90° rotary table, enabling smooth two-directional cutting in a single setup.
This cutter delivers both vertical and horizontal cuts in one operation, dramatically reducing equipment and labor costs. Its fully PLC-controlled system allows easy adjustment of cutting sizes (within 600mm) with outstanding precision achieving dimensional errors of less than 1mm. The entire process is automated without removing the concrete cake from the bottom plate, ensuring smooth surfaces and clean edges. Contact us to integrate this high-performance concrete cutter into your production line for optimal results and cost savings.
- Model: HDSHM1-001
- Dimensions: 6650×3300×3650mm
- Power: 20.9kW
- Saw wheel diameter: 600mm
- Cutting speed: 12-15m³/h
- Large capacity: renowned for its exceptional capacity, capable of handling up to 3.44 cubic meters in a single operation. This significantly reduces production time and enhances operational efficiency.
- Horizontal and vertical cuts: one saw completes both horizontal and vertical cuts, reducing investment costs.
- Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
- Precision and aesthetic dimension: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
- Labor-saving: requires only one operator to complete the cutting process.
- Easy saw blade replacement: Saw blades can be changed in 1-2 minutes.
- Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
- Superior performance: it can cut semi-dry and wet concrete (0.5-2MPA) and hardened concrete (3.5-5MPA), ensuring precise, high-quality cuts for various applications.
- Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks such as ceramist or perlite blocks.
