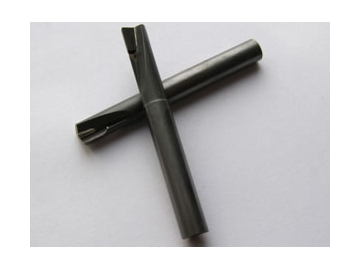

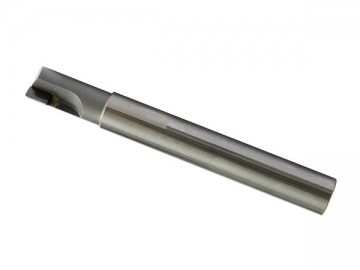

PCD Milling Tool
Features of PCD Milling Tool
1. The PCD milling tool features high processing precision, high processing efficiency, high hardness, high abrasive resistance, high thermal conductivity and strong toughness, it has advantages over the average hard alloy milling tool.
2. It can realize high speed cutting and hard material cutting.
3. Our PCD milling tool has a long service life. Its service life is 10 to 20 times that of a hard alloy milling tool.
Application
The PCD milling tool is used to process work pieces of various materials, including copper, aluminum, copper alloy, aluminum alloy and composite material. It can be used to process cast aluminum alloy engine case.

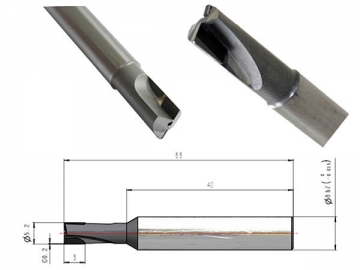

| Dimension (mm) | |||
| ΦD | L | L1 | Er |
| 4 | 100 | 55 | 120 |
| 6 | 100 | 55 | 120 |
| 8 | 100 | 55 | 120 |
| 10 | 100 | 55 | 120 |
| 12 | 120 | 55 | 120 |
| 14 | 150 | 55 | 120 |
Material
The tool bit of the PCD milling tools uses PCD blanks manufactured by world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI. The body part uses high quality tungsten carbide and tool steel.
As a specialized PCD milling tool manufacturer in China, we supply a comprehensive range of products that includes PCD reamer, glass cutter holder, tungsten carbide supported diamond die blanks, PCD inserts, and more.
