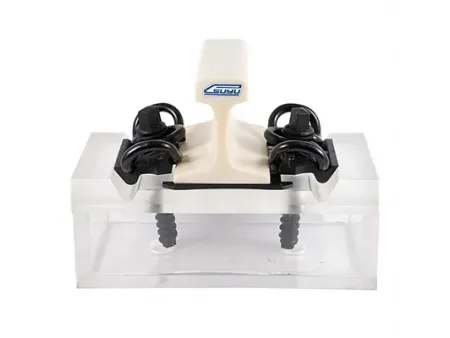

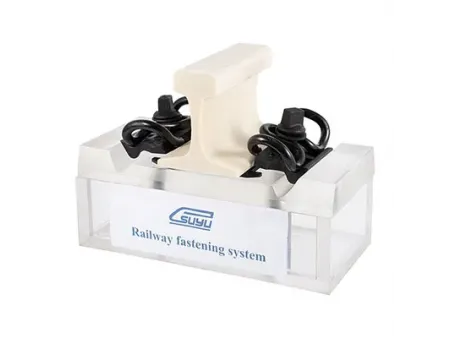

W30 Fastening System
The W30 rail fastening system is widely used on ballasted tracks and concrete sleepers. It operates reliably with minimal wear and requires minimal maintenance.
Basic Parameters
- Axle load: ≤ 35 t
- Speed: ≤ 160 km/h
- Curve radius: ≥ 400 m
- Height adjustment: optional
- Gauge adjustment: ± 10 mm
Its rail clips can withstand high loads, dynamic fatigue, and creep resistance, offering a highly elastic solution for conventional and heavy-duty rails. Its components are easy to handle and replace, which reduces downtime and maintenance costs, making it a cost-effective solution for railway operators.
We use TPU material for the rail pad, which can endure harsh weather conditions, adapting to a wide temperature range from -60°C to 50°C. This makes it an ideal material for coping with extreme temperature fluctuations. Even under extreme weather conditions and high atmospheric humidity, it ensures a safe ride every time.

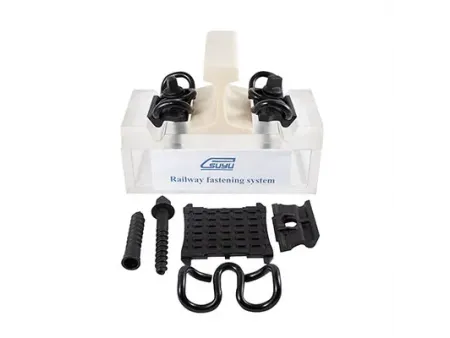

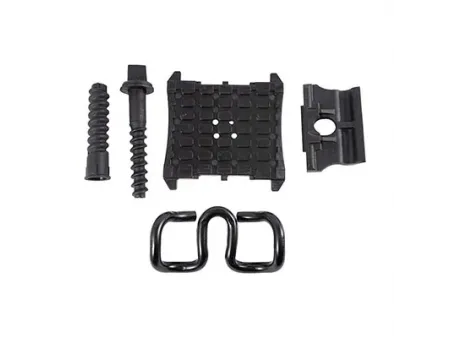

The complete W30 fastening system for each sleeper consists of the following components

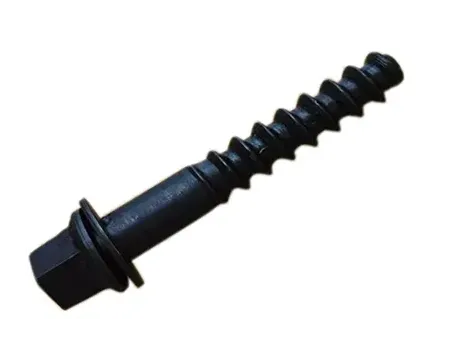

- 4 pcs Screw spike Ss35-161
- 4 pcs Flat washer UIs7

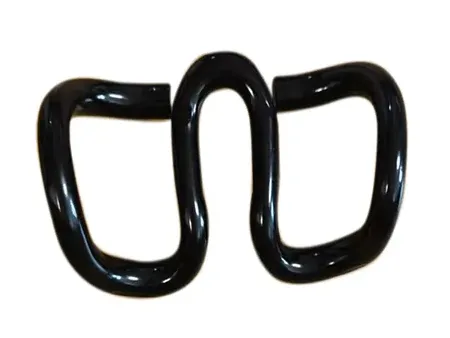

- 4 pcs Rail clip SKL30

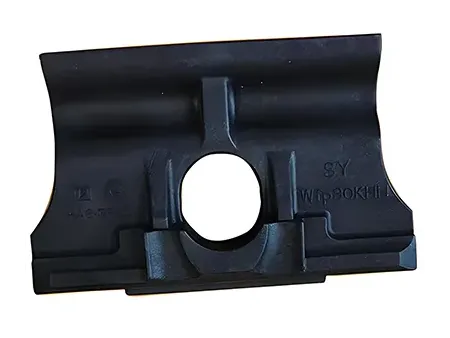

- 4pcs Guide plate Wfp30K-12hh

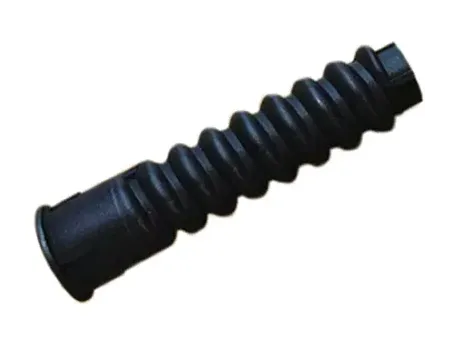

- 4 pcs Plastic dowel SDU25

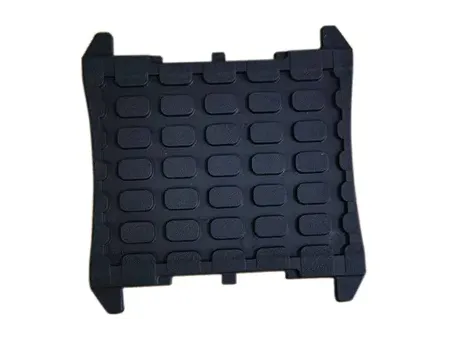

- 2 pcs Rail pad Zw148/175/7
| Part name | Technique parameter | Technical requirement | Remark |
| Type | Dia.14.5mm | Application for different rail type | |
| Material | 60Si2Mn | Chemical composition(%): C:0.57, Mn:0.75, Si:1.73,Cr:0.07P:≤0.015, S:≤0.006 | |
| Finish | Plain oiled, color painting, or the other required by customers | Offered as ordered | |
| Hardness | 42-47HRC | ||
| Fatigue life | when clip spring deflection is 9.1mm, swing is 1.42mm, fatigue life is up to 3 millions cycles without breaking. | ||
| Standard refers to | DIN17221, GB/T1222 | ||
| Type | M24x161mm | ||
| Grade | Grade 5.6: 35# | Tensile strength: ≥500Mpa, Yield strength:≥300Mpa, Elongation:≥20%, Cold bending: 90 degree without crack | |
| Finish | Plain oiled, Oxide black, Zinc plated, Hot dip galvanized, Dacromet, Sherardizing | ||
| Standard refers to | ISO898-1, UIC864-1, and NF F500-50 | ||
| Type | For different size of screw spike | ||
| Material | Reinforced Nylon 6 (PA6) | Density:1.15g/㎝3, Tensile strength: 66.3Mpa, Elongation: 31.3%, Melting point:228℃, Insulation resistance:≥2.8×1012Ω, Hardness:≥114HRR | |
| Color | Black | ||
| Type | UIC54,115RE rail, and size as ordered | ||
| Material | Reinforced Nylon 6 (PA6 30%GF) | Density:1.39g/㎝3, Tensile strength: 165Mpa, Elongation: 3.5%, Melting point:226℃, Insulation resistance:≥1.9×1012Ω, Glass fiber content:30-35%, Hardness:≥114HRR | |
| Color | Black | ||
| Type | UIC54,115RE, 50kg rail, rail, and size as ordered | ||
| Material | TPE (Thermoplastic Elastomer ) TPU (Thermoplastic Polyurethane) | Density:1.09g/㎝3, Tensile strength:4.23Mpa, Tensile Modulus :2.97Mpa, Melting point: 200-220℃, Shore hardness: ≥40D | |
| Color | Black, white or other color |
