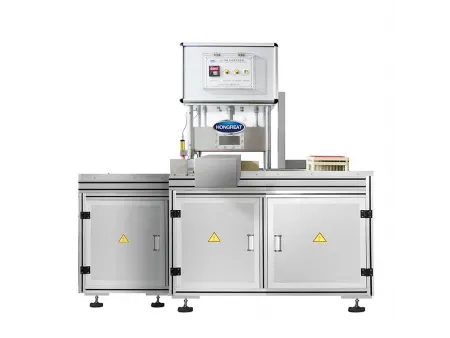

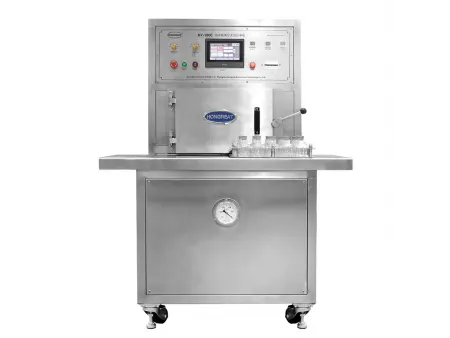

Vacuuming & Cap-Pressing Machine
Vacuum blood collection tube machine for generating negative pressure and tightening caps
Equipped with a high-precision numerical vacuum control system, enabling precise vacuuming and cap pressing for test tubes. The vacuuming and cap pressing system ensures consistent and accurate vacuum levels while securely pressing caps into place, making it ideal for sensitive applications that demand precision and reliability
- Production capacity: 8,000-10,000 pcs/h
- Tube size: Ø8mm/Ø13mm/Ø16mm, length 75-120mm
- Vacuum degree: 0～-95Kpa
- Vacuum precision: ±3% (excluding the tolerance of tube)
- Power: 2.5kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 1600×900×1650mm
Equipped with a high-precision numerical control (NC) vacuum system, designed to efficiently handle the vacuuming and cap pressing process in blood collection tube assembly lines. Capable of processing up to 200 tubes per cycle, it ensures precise Vacuuming and secure cap pressing, making it an ideal solution for large-scale medical production environments
- Production capacity: 15,000-18,000 pcs/h
- Tube size: Ø8mm/Ø13mm/Ø16mm, length 75-120mm
- Vacuum degree: 0～-95Kpa
- Vacuum precision: ±3% (excluding the tolerance of tube)
- Power: 3kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 1800×900×1650mm
Equipped with a high-precision numerical control (NC) vacuum system, capable of efficiently vacuuming and cap pressing up to 200 tubes per cycle. Its modular design allows seamless integration with automated production lines, making it a versatile and stable solution for high-volume medical manufacturing environments
- Production capacity: 15,000-18,000 pcs/h
- Tube size: Ø8mm/Ø13mm/Ø16mm, length 75-120mm
- Vacuum degree: 0～-95Kpa
- Vacuum precision: ±3% (excluding the tolerance of tube)
- Power: 3kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 2000×900×1650mm
