Aluminum Profiles Powder Coating Line
Request a Quote

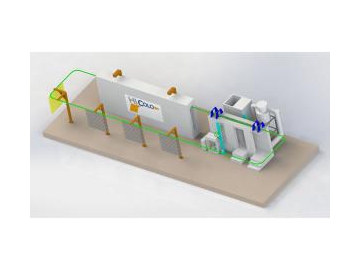

Horizontal coating line for small or medium-sized manufacturers of aluminum
With a fast color change powder coating system, it can change colors in short time also can meet the requirements of a variety of color changes.
Parameters| No. | Name | Design Basis |
| 1 | Product name | Aluminum |
| 2 | Maximum thickness of material | ≤1.2mm |
| 3 | Pre-treatment method | Immersion pre-treatment |
| 4 | Spraying method of powder | Automatic manual |
| 5 | Maximum size of workpiece hanged on the assembly line | L×W×H=6800×200×1900(mm) |
| 6 | Maximum weight of workpiece | ≤70Kg/hanger (including balance beam) |
| 7 | Hanging method | Double points hanging (hanging method as shown in the layout) |
| 8 | Suspension conveyor chain on the assembly line | QXG-200 model, hanging weight 35kg |
| 9 | Scissors film pitch on the assembly line | 7200mm /2pieces |
| 10 | Processing speed | 0.8m /min |
| 11 | Production line speed range | 0 ~ 1.5m /min |
| 12 | Powder curing temperature | 180 ~ 200 ℃ (LPG heating) |
| 13 | Powder coating time | 16min-20min (not including air curtain section) |
| 14 | Heating source of curing tunnel | LPG heating |
| 15 | Dehydration oven | ≤110 ℃ ( LPG heating ) |
| 16 | Area | As shown in the layout, the height of beam bottom is above 5.5m |
| 17 | Power is provided by user | AC 220V 60Hz 3φ |
| 18 | Lighting equipment is provided by user | AC 110V 60Hz 2φ |
| 19 | LPG temperature | 14000Kcal/kg·h |
| 20 | Compressed air | 3.3m3 /min |
| 21 | Temperature of immersion pre-treatment | Room temperature |
