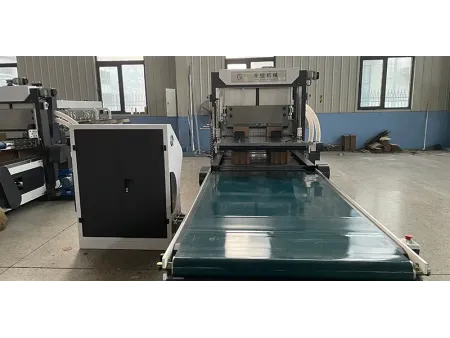

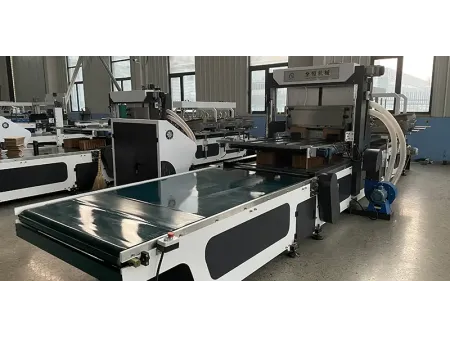

Automatic Partition Assembler Machine
Request a Quote
Partition assembling machine for producing corrugated box divider inserts
The fully automatic partition assembler offers complete automatic operation, enabling efficient and accurate assembly of carton partitions across a wide range of specifications. It delivers high processing precision and significantly boosts overall production efficiency.
Technical Specifications
| Name | Unit | Specification |
| Horizontal inserting width (A) | mm | 120-900 |
| Longitudinal sheet length (B) | mm | 210-600 |
| Clapboard height (C) | mm | 45-160 |
| Longitudinal clapboard distance (D) | mm | 20-500 |
| Horizontal clapboard distance (E) | mm | 45-800 |
| Number of longitudinal sheets | pcs | 1-6 |
| Number of horizontal clapboards | pcs | 1-25 |
| Carton inserting opening width (F) | mm | > board thickness |
| Carton thickness (G) | mm | 2.5-8 |
Will equipment efficiency be affected if the machine is customized for a wider format?
No. When a wider format is customized, the equipment structure and transmission system are optimized accordingly. This ensures the automatic partition assembler maintains stable production efficiency, with no impact on the corrugated partition assembly process.
