Automatic Tufting Machine
Request a Quote
Request a quote
- The gun head can be increased according to customer demand to improve the production efficiency. The tufting machine can seamlessly produce larger and longer carpets (engineering carpets).
- Multi-head tufting machine allows for a tufting capacity of 3200 (H) *[6000*N-1000] (L), where N is the number of gun heads.
- The carpet production machine automatically monitors and processes according to the pattern to guarantee the working efficiency under high speed.
- The human-computer interaction interface clearly displays the tufting path and status of the machine, and it will feed back problems in real time to mend the carpet pattern in time.
- This tufting machine comes with stable performance and strong anti-interface property.

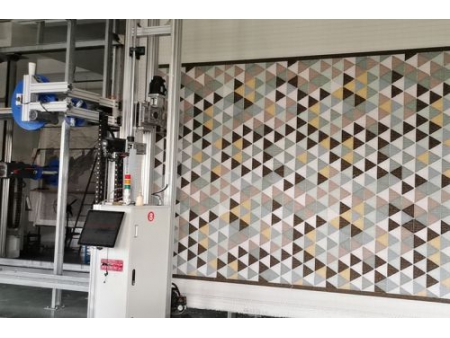

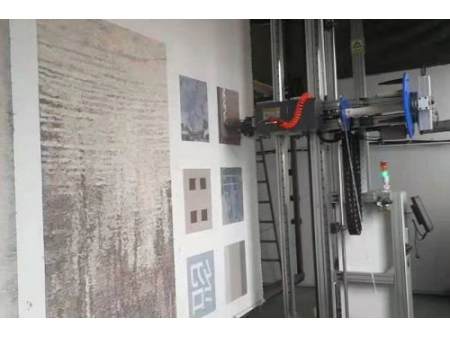

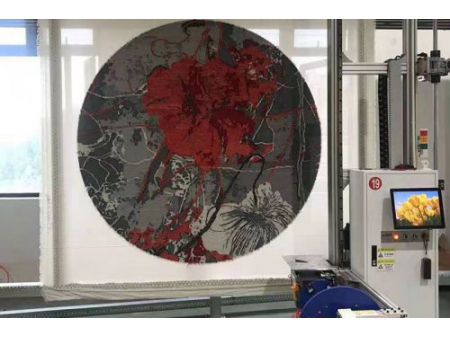

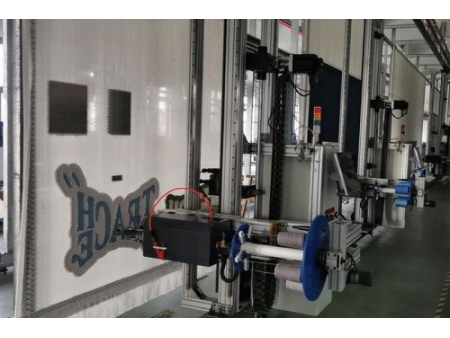

Tufting Machine in Process
Technical Parameters
| Model | WT-46 CNC Tufting Machine |
| Number of Axis | 4 |
| Power | 4.0 kW |
| Efficiency | Simple pattern: 2-3㎡/h; complex pattern: 0.8-1.5㎡/h |
| Tufting Capacity | Single needle: 4500 (L) *3100(H) mm |
| Multi needles: N*4500-1000 (L) *3100 (H) mm | |
| Pile Height | Cut: 6-20mm; loop: 6-15mm |
| Density | Needle gauge: 1-10mm; min. line spacing: 2mm |
| Tufted Material | Acrylic, wool, bamboo fiber, silk yarn, artificial cotton |
| Weight | 1200 kg |
Features
- The yarn quantity is automatically verified based on the processing requirements, easy and fast, which is of scientific and effective control of yarn stock.
- For each area of the carpet pattern, it allows for flexible choice of various working path and tufting methods. The machine-tufted carpets feature smooth and even surface and edge. Besides, the tufting path and sequence of each area can be optimized to produce high quality tufted carpets and rugs.
- The pattern processing function supports the using of more than 100 colors at a time. Pattern import and export are also compatible. Allowing file formats include DXF, DWF, BMP, TIF, SVG, GIF, PCX, PLT, etc. This function makes the machine flexible and convenient to use for a wide application.
- Straight and curve patterns processing can choose different speed for tufting.
- Restarting production after downtime is seamless.
- The human-computer interaction interface is simple and easy to operate.
