Automatic Framing Machine
Request a Quote

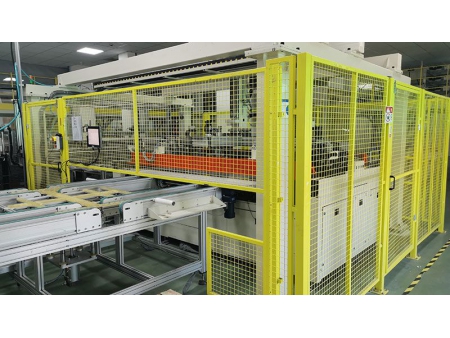

Used for automatic silicon dispensing and assembling of solar panel frames
The automatic framing machine features short cycle time and high precision and can meet panel production requirements. The corner misalignment, the leaking hole dislocation and the border-corner clearance are all within 0.3mm. A shorter panel-switching time also improves production efficiency. And the HMI provides two languages of Chinese and English to meet different customer demands.
Technical Parameters
| Item | Parameters |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | ≤20s |
| Panel corner misalignment | ≤0.3mm |
| Leaking hole dislocation | ≤0.3mm |
| Border corner clearance | ≤0.3mm |
| Switch Time | ≤1-2h |
| Alignment mode | Cylinder alignment, servo switching |
| HMI languages | Chinese and English |
| Overall dimensions: | 3,300*2,450mm |
| Voltage | 3 phase 5 wire 380V, 50Hz, AC±20% |
| Power | 3.7kW |
| Air pressure | 0.6-0.8MPa |
Features
- Adding the frame gantry, higher than the conveying line, the frame can be placed in advance
- The force exertion is even to ensure the uniform glue application;

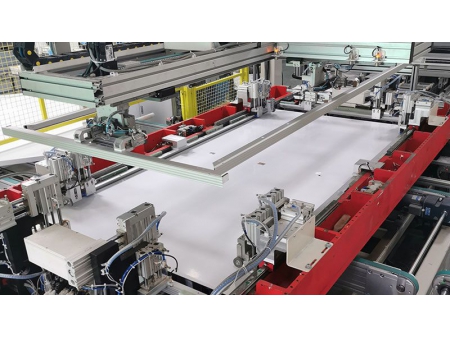

- 20 sets of suction cups complete the panel leveling without leaving marks on the glass;
- The framing machine is designed with profile straightening and pressure angle mechanisms to make qualified frames with accurate angles.
