Aluminum Flexible Duct Machine
Zhenhuan is focusing on designing & developing HVAC ventilation duct machines, transformer making machines, lead-acid battery making machines, motor making machines, leather processing machines, heat exchanger making machines, car radiator & AC condenser making machines, home-used air conditioner and refrigerator making machines, hardware wire products making machines, tube & pipe making and processing machines, etc.
- PAD300
- FAD-600D
- AFD-600D
- AFD-600
- PAD-300
This machine is specially designed for producing aluminum flexible ducts made from pure aluminum foil or stainless steel, without steel-wire reinforcement, for various applications.
- Diameter range60-300mm (option: 80-500mm)
- Length of aluminum tube100-8000mm
- Raw material (Thickness)Pure aluminum foil: 0.06-0.15mm (code 8011, hardness H22)
Stainless steel, 0.06-0.15mm - Raw material (Width)42-60mm
- Machine size1800 x 650 x 1250mm
- Weightapprox. 250kg
- Main motor power1.5kW
- Cutting control methodPLC
- Duct concentrating device (optional)3000 x 480 x 1500mm

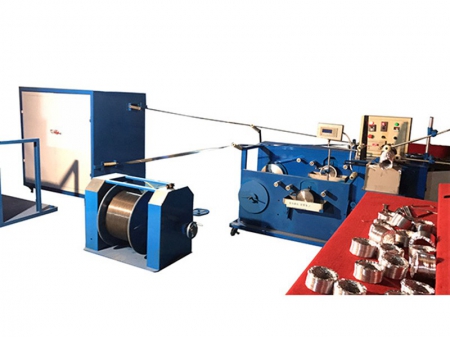

This fully automatic aluminum duct production line consists of a heating oven, main forming machine, steel-wire decoiler, automatic length-cutting device, and compressing/packing machine. It is specially designed for producing aluminum flexible ducts for ventilation systems, using aluminum foil or metallized PET film reinforced with steel wire. The entire production line operates fully automatically, requiring only one operator.
- Diameter range60-600mm
- Length of aluminum tube1-10m
- Raw materialmetalized PET film, 0.023mm, width 40-60mm, steel wire 0.8-1.4mm dia.
- Dimensions (L x W x H)Main machine: 1900 x 1000 x 1400mm
Heating oven: 1600 x 1100 x 1650mm - WeightAbout 950kg
- Main motor power1.5kW
- Temperature40~120º
- Heating oven5kW
- Compressing machine5kW
- Working speed1~35m/min
- Feature of finished ductsTemperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm
This flexible duct forming machine could produce single layer aluminum duct, double-layer aluminum duct and aluminum duct with PVC lamination. It could be equipped with automatic cutting and automatic compression according to requirements to significantly improve production efficiency.
- Diameter range60-600mm
- Length of aluminum tube1-10m
- Raw materialMetalized PET film, 0.023mm, width 40-60mm, steel wire 0.8-1.4mm dia.
- Dimension (L x W x H)Main machine: 1900 x 1000 x 1400mm
Heating oven: 1600 x 1100 x 1650mm - WeightAbout 950kg
- Main motor power1.5kW
- Temperature40~120º
- Electric heating power4kW
- Working speed1~35m/min
- Feature of finished ductsTemperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa Pitch between
corrugations: 20mm
This aluminum flexible duct forming machine is specially designed for producing aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforced for ventilation purpose.
- Diameter of aluminum flexible duct80-600mm
- Length of aluminum flexible duct1-10m
- Raw material (Metalized PET film)0.012mm in thickness, 35-50mm in width
- Raw material (Pure aluminum foil)0.025-0.035mm in thickness, 35-50mm in width
- Raw material (Steel wire)Dia.: 0.8-1.4mm
- Aluminum flexible duct (Temperature resistance)-30-140℃
- Aluminum flexible duct (Max. air flux)30m/s
- Aluminum flexible duct (Max. working pressure)2500Pa
- Aluminum flexible duct (Pitch between corrugations)20mm
- Main driving motor power1.5kW
- Glue heating temperature40-120℃
- Electric heating power2.4kW
- Film/foil feeding speed1-35m/min
- Machine dimensionAbout 2200×820×1550mm
This aluminum flexible duct forming machine is specially used for producing aluminum flexible ducts with pure aluminum foil or stainless steel without steel wire reinforcement for various purpose. Especially our omnipotent mould can greatly save investment cost.
- Diameter range150-450mm
- Length of aluminum tube100-8000mm
- Raw materialPure aluminum foil: 0.05-0.15mm (code 8011, hardness H22)
Stainless steel, 0.08-0.18mm - Dimension1800 x 650 x 1250mm
- WeightAbout 400kg
- Main motor power1.5kW
- Width of material42~60mm
