High Pressure Water Jetting Pump Unit
Backed by 20 years of experience in the development of high-pressure water-jet technology, DARDI has developed high pressure water jet pumps for removal of old paint, rubber, chemicals and other heavy build up without causing surface damage. This equipment is also ideal for completing special processes on stone surfaces
Our high-pressure water jetting pump unit is equipped with a large flow, high pressure pump driven using an electric motor or diesel unit to pressurize water flow to 4000 psi. The multiple steam, multiple angle and multiple strength water flow is emitted from the gem nozzles for a highly efficient object surface cleaning and easy access to hard to reach areas such as complicated pipelines.
By using an extremely high-pressure water cleaning, users can effectively clean industrial workshops with dust in the air without having to enclose the space. This assists in creating an environment with no risk of contamination to your precision equipment. This high-pressure water cleaning ensures surface painting is easier, and meets NACE 5/SSPC-SP 12 specifications.
- Ultra high-pressure water cleaning is a physical cleaning method that creates no harmful substances or causes secondary pollution such as chemical contamination.
- The water current pressure and size is freely adjustable according to your applications, ensuring users obtain the best cleaning result with no surface damage.
- Ultra high-pressure water cleaning provides a quick and thorough cleaning effect. By using it, the cleaning rate of the heat exchanger exceeds 95%, while the descaling rate for boilers also exceeds 95%. Rust removal of ship surfaces reaches Sa2.5.
- The high-pressure water jet will clean objects with complex shapes and sizes, even in narrow spaces and harsh environments.
- The water jet pump unit saves energy and is environmentally friendly with only 1/3 the cost of chemical cleaning.

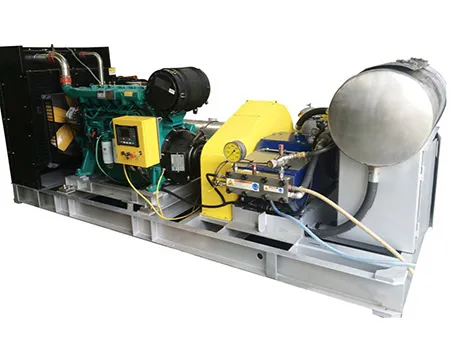

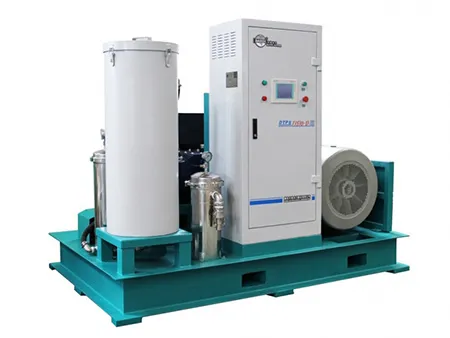

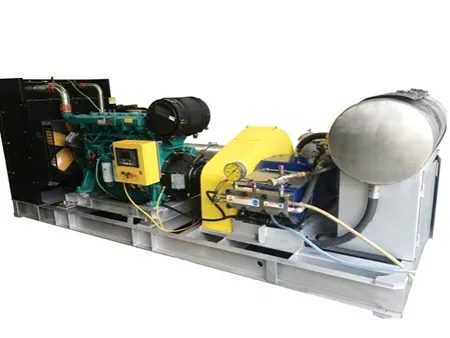

Shown here are some of our water jet pump units. We will design these water jet pumps according to specific customer requirements.
| Type | Power | Pressure(Mpa) | Flow(Lpm) | Dimension(mm) | Weight(Kg) |
| DIPS5520D | 55kw/75Hp | 200 | 12 | 2000x1500x1450 | 2000 |
| Type | Power | Pressure(Mpa) | Flow(L/min) | Dimension(mm) | Weight(Kg) |
| DTPS10015-D-75 | 75kw/100Hp | 140 | 28 | 2400x1550x1870 | 3300 |
| DTPS13530-D -110 | 100kw/135Hp | 280 | 19.5 | 2400x1550x1870 | 3500 |
| DTPS27030-D-200 | 200kw/270Hp | 280 | 38 | 2800x1750x1891 | 4500 |
| Type | Power | Pressure(Mpa) | Flow(L/min) | Dimension(mm) | Weight(Kg) |
| DTPS13530-C | 100kw/135Hp | 280 | 19.5 | 2400x1550x1870 | 3500 |
| DTPS27030-C | 200kw/270Hp | 280 | 38 | 2800x1750x1891 | 4500 |
| Industry | Applications | Pressure(bar) |
| Aviation | Airplane runway cleaning, degreasing, degumming, aircraft paint removal | 400~700 |
| Aluminum | Clean the tank, filter screen, mill, cesspool, etc. | 500~1400 |
| Can | Car body paint and dross removal, chassis and tank pre-processing before painting | 500~700 |
| Brewing | Clean the fermenter, boiler, and manifold. Remove fermentation and precipitate in pipeline | 350~700 |
| Cement | Remove grease and cement scale from fence, floor, outer wall of pipe, production equipment. Remove the scale layer from hearth, preheater, rotary kiln, etc. | 400~700 |
| Chemical, Pharmaceutical | Clean and decontaminate the boiler, heat exchanger, tank, valve, pipeline, evaporator, reactor, electrolytic cell, filter. | 250~1400 |
| Construction | Remove the pollutants such as dirt, asphalt, oil stain, tar, cement, and glue from vehicle, mixing tank, paving machine, asphalt sprinkler. | 350~700 |
| Food processing | Remove the grease, dirt, and residue from the kettle, mixing tank, conveyor, evaporator, heat exchange, etc. | 350~700 |
| Foundry | Remove sand from castings, remove metal oxide layer. | 500~1000 |
| Highway | Remove the grease, cement, and asphalt from road construction equipment. Wash the bridge, road marking, road, etc. | 200~2500 |
| Ship | Remove dirt, marine organism attachment, rust from ship hull, drilling platform, dock, tank, boiler, heat exchanger, etc. | 350~2500 |
| Meat processing | Remove the grease, bloody, and soot from oven, blender and barrel. | 300~500 |
| Machinery manufacturing | Remove the Zapi, rust layer, slag, burr and more from container, pipeline, tank. | 700~1400 |
| Mining | Wash the minecart, conveyor, and production line. Dredge the equipment and remove the coal, stone, sludge, grease, etc. | 500~700 |
| Municipal engineering | Dredge the sewer, clean the building and public health facilities, remove the calcium carbon scale in water treatment plant. | 60~350 |
| Oil field | Clean the paraffin and crude oil residue in drilling platform and tank. Remove the dirt in casing drilling. | 350~1400 |
| Petrochemical, rubber | Remove the dirt in interior wall and exterior wall of the equipment and container. Remove the crude oil residue, tar, precipitate, rubber, emulsion in heat exchanger, cooling tower and coke oven. | 500~1400 |
| Power station | Remove the radioactive dirt in nuclear fuel chamber. Wash the boiler, heat exchanger, superheater, evaporator, and steam turbine blade. | 500~1400 |
