High Precision Fiber Laser Cutting Machine, BFH Series
Request a Quote

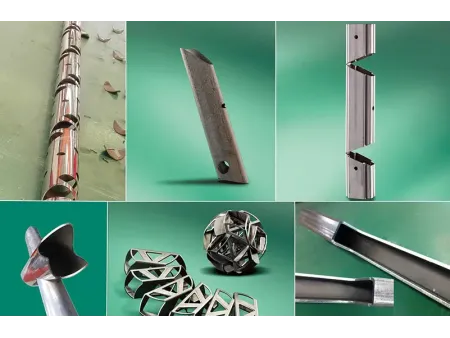

Applicable Materials
Precision in manufacturing is important when working with delicate and intricate components. This series of fiber laser cutters is designed to meet these demands, making it ideal for applications such as jewelry making, eyewear production, and the crafting of fine instruments. It’s also widely used in industries that require high accuracy, including electronics, lighting, and digital devices, ensuring every cut meets exacting standards.
Features
- Equipped with a dustproof linear motor module rated at IP5X, providing reliable protection against dust and ensuring consistent high performance.
- Operating with stable and mature technology, it offers outstanding efficiency in cutting thin sheets, making it ideal for precision work.
- Its frame is constructed from marble, providing exceptional rigidity and high strength, which ensures the laser cutter machine's durability and precise operation. The use of marble as the structural foundation helps maintain stability and accuracy over long periods of use.
- Capable of running continuously for 24 hours, the laser cutter maximizes material utilization, offering strong scalability and flexibility in various applications.
- The beam is designed with lightweight, extruded aluminum profiles, which are precisely machined using CNC gantry milling to guarantee excellent acceleration and movement accuracy.
Main Parameters
- Laser power: 1000W-3000W
- Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
- Machine power: 12/17/22kW
- Operating temperature: 0℃~40℃
- Operating humidity: <90% Non-condensing
- Axes motion: Marble base linear module
- Cooling method: Water cooling
Detailed Parameters of Available Models
| Model | | | |
| Working area (mm) | 500*400 | 600*600 | 800*800 |
| Machine dimensions (mm) | 1400*1430*1820 | 1800*1430*1800 | 2080*1800*1900 |
| Machine weight (t) | 1 | 1.4 | 2 |
| Max. acceleration (g) | 1.5 | 1.0 | 1.5 |
| X/Y axis maximum speed (m/min) | 60 | 40 | 60 |
| X/Y-axis positioning accuracy | ±0.02 | ±0.02 | ±0.02 |
| X/Y-axis repositioning accuracy | ±0.005 | ±0.005 | ±0.005 |
| Z-axis travel (mm) | 100 | 100 | 100 |
