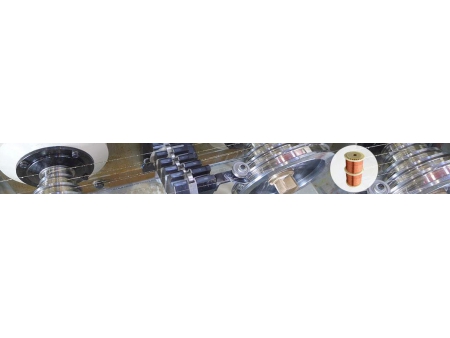

LHS220-24B Intermediate Wire Drawing Machine
Request a Quote
Descriptions
The LHS220-24B intermediate wire drawing line is a single wire drawing machine with a minimum finished wire diameter of 0.10mm. A flat fan is applied for lubricant spraying, to ensure sufficient lubrication during the wire during processing. The maximum die number of the wire drawing machine is up to 24. Diamond and cemented carbide dies are available to choose from. Instead of working at a constant frequency, we apply a frequency changing function which changes the frequency via two frequency changers controlled by PLC. This effectively lowers the power consumption of the equipment.
| Model | LHS220-24B |
| Inlet Wire Diameter | φ0.55-φ1.2mm |
| Finished Wire Diameter | φ0.10-φ0.40mm |
| Drawing speed max | 2200m/min |
| Number of Drawing Dies | 24 (1 11 11 1) |
| Die elongation | 14% -15% |
| Lubrication Method | Lubricant spraying (flat fan) |
| Total Power | 21kW |
| Motor Power | 15kW/5.5kW |
| line arrangement | Ball screw driven by servo motor to rotate take-up axis |
| Take-up Bobbin Diameter | φ300×270×φ215×250×φ125mm φ400×304×φ270×280×φ127mm |
| Machine Dimension | 1620×1565×1995mm (L×W×H) |
| Machine Weight | 2.13t |
| Max. Take-up Bobbin Weight | 50-100kg |
| Display | Touch screen |
The LHS220-24B Intermediate Wire Drawing Machine is our standard type, We also provide customization services tailored to your wire drawing needs. For example, specifications (number of dies, lubricant formula, case material, outlet die angle adjustable range, etc. )can be adjusted according to metal materials with different physical properties.
