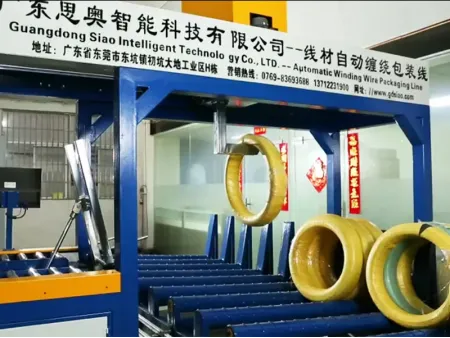

Automatic Wire Drawing & Packaging Line
SA-2XBZ-100
Combination of dead block coiler and coil wrapper for wire drawing, coiling, strapping, wrapping, weighing and labeling of wire coils
- Packaging speed 65sec/pc
- Inner diameter of coil 450mm (±20mm)
- Outer diameter of coil 800mm (±20mm)
- Coil length 250-500mm

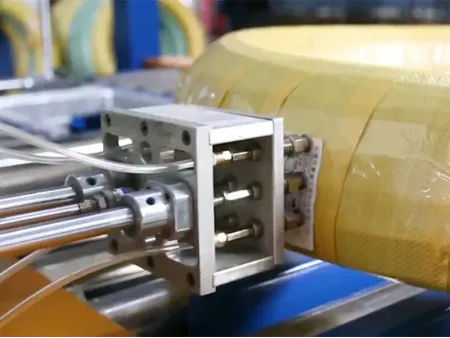

This fully automated wire drawing and packaging line integrates manual or automated coil feeding (via AGV, forklift, or overhead crane) with a configurable wire drawing module, tailored to your production capacity and process requirements. Once the wire reaches the preset weight, the system performs automatic cutting, strapping with PP or PET bands, automated transfer to the wrapping unit, through-the-eye wrapping using woven tape, PE film, or kraft paper, followed by weighing, labeling, and specification-based storage.
All label data is instantly uploaded to your ERP or MES system for real-time data sharing and production traceability. The entire line requires only one operator to load the wire and thread the die as the rest of the process is fully automated, delivering scalable and efficient coil production.
This wire drawing and packaging line is used for drawing and packaging stainless steel, low-carbon steel, and high-carbon steel wire. After packaging, the coils are tightly secured and neatly arranged, offering moisture, dust, rust, and scratch protection, ensuring product quality during storage and transportation.

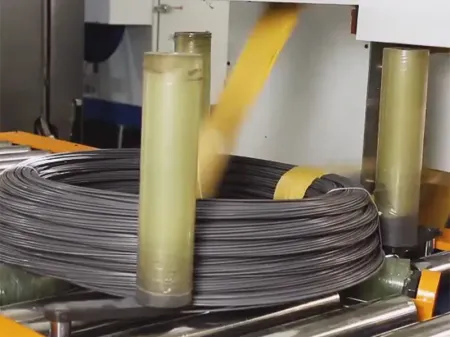

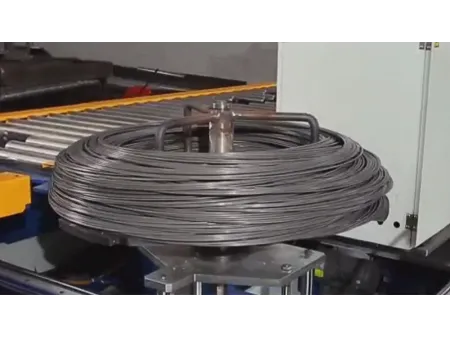

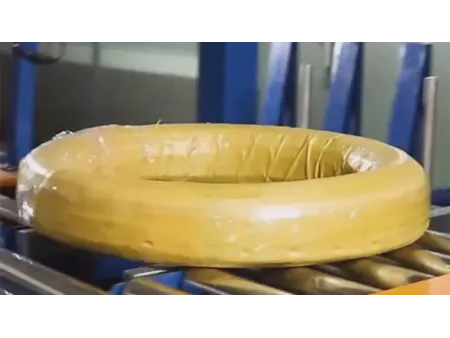

Before packagingAfter packaging- Type: Horizontal coil wrapping machine with roller conveyor
- Dimensions (L×W×H): 20×24×6m
- Inner diameter of coil: 450mm ±20mm
(machine can be designed based on the required size of customer's products) - Outer diameter of coil: 800mm ±20mm
(machine can be designed based on the required size of customer's products) - Coil length: 250-500mm
- Weight: 250-400kg
- Packaging speed: Approx. 65sec/pc
- Voltage: AC220/380V, 50/60 Hz
- Total power: 96kW
- Air pressure: ≥0.6MPa
- Packaging materials:
Wrapping film / anti-rust film:
Width: 60-90 mm
Core inner diameter: 50 mm
Outer diameter: 100-150 mm
Woven tape / composite paper tape / crepe paper tape:
Width: 60-90 mm
Core inner diameter: 55 mm
Outer diameter: 100-150 mm
