Wire drawing machine for copper wires

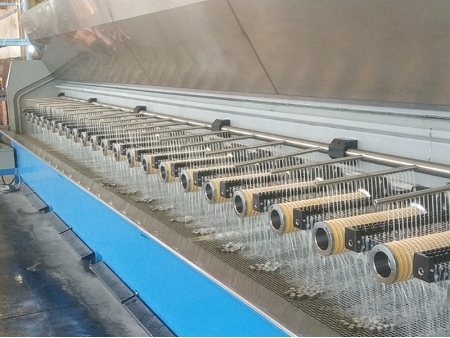

Designed for efficiency and precision, the multiwire drawing machine with annealer processes multiple strands of copper wire simultaneously. It can handle 8-24 strands of ⌀1.6-3.5mm low-oxygen or oxygen-free copper wires, as well as electroplated tin copper wires, transforming them into 8-24 strands of ⌀0.15-1.05mm copper wires while performing annealing. The finished wires are neatly coiled into spools, ready for use.

Features

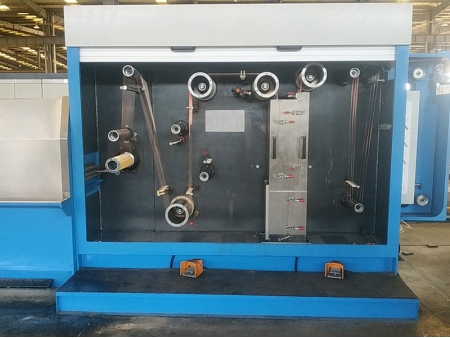

  • Combines wire drawing and annealing processes, ensuring high production efficiency, stable resistivity, and consistent elongation.
  • Ensures stable product quality and uniform dimensions, with high production efficiency and low labor intensity for workers.
  • Available with gear drive or individual motor drive systems. Choose from 8-head, 14-head, 16-head, 20-head, or 24-head configurations based on your production needs.
  • Gear drive is ideal for continuous drawing and annealing of ⌀0.2-1.05mm wires, offering excellent cost-performance ratio.
  • The individual motor drive system produces a full range of high-quality products, with stable output, high efficiency, and low noise.
  • Each drawing drum is independently driven, allowing precise control of compression ratios for better mold matching and adaptability to different wire grades.
  • Optional take-up systems include single or multiple spool configurations.

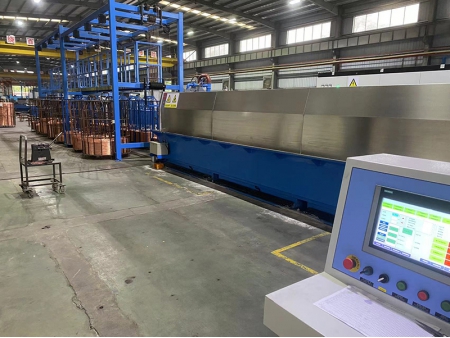

  • Utilizes an MMI PLC control system for synchronized control of the entire production line. Real-time monitoring and easy adjustment of process parameters via the touch screen ensure efficient and user-friendly operation.
  • Offers a range of auxiliary equipment, including threading machines, cold welding machines, heat exchangers, and oil filtration systems, providing a complete turnkey solution for seamless operation.
Specifications
Model Inlet wire rod diameter (mm) Outlet wire diameter (mm) Max. drawing pass Max. speed (m/min) Installed capacity (kVA) Bobbin size (mm)
HTBT21-16
16*⌀1.8 8*⌀2.6 16*(⌀0.18-⌀0.4) 8*(⌀0.4-⌀0.52) 21 1800 330 2*PND630
HTBT25-16
16*⌀1.8 8*⌀2.6 16*(⌀0.15-⌀0.4) 8*(⌀0.4-⌀0.52) 25 1800 330 2*PND630
HTBT16-14
14*⌀1.8 7*⌀2.6 14*(⌀0.28-⌀0.52) 7*(⌀0.4-⌀1.05) 16 1800 530 2*PND630
HTBT20-14
14*⌀1.8 7*⌀2.6 14*(⌀0.20-⌀0.52) 7*(⌀0.4-⌀1.05) 20 1800 530 2*PND630
HTBT21-8
8*⌀1.8 8*(⌀0.15- ⌀0.52) 21 1800 240 1*PND630
HTBT17-8
8*⌀1.8 8*(⌀0.2-⌀0.52) 17 1800 240 1*PND630
HTBT16-8
8*⌀1.8 7*⌀2.6 8*(⌀0.28-⌀0.85) 7*(⌀0.4-⌀1.05) 16 1800 510 1*PND630
