Automatic Wire Drawing & Packaging Line
SA-6XBZ-200
Combination of dead block coiler and coil wrapper for wire drawing, coiling, strapping, wrapping, weighing and labeling of wire coils
- Packaging speed 65sec/pc
- Inner diameter of coil 450mm (±20mm)
- Outer diameter of coil 800mm (±20mm)
- Coil length 250-500mm
This integrated coil packaging system combines dead block wire drawing machines with a coil wrapping unit, delivering a fully automated solution for wire coil processing. The line supports manual or automated feeding using AGVs, forklifts, or overhead cranes, and includes a customizable wire drawing feature tailored to your production capacity and process requirements.

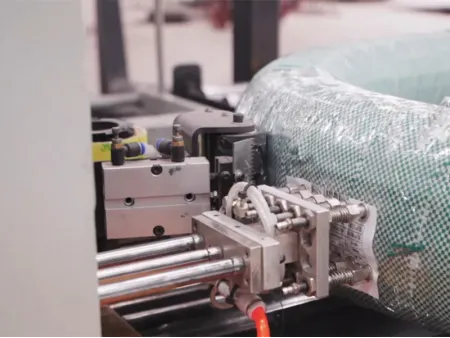

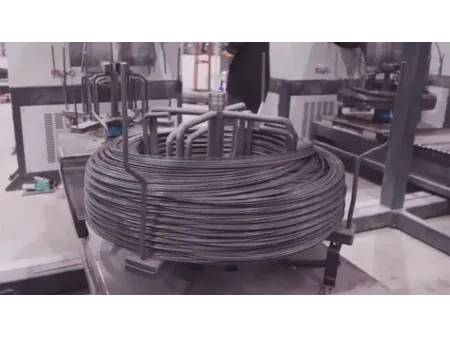

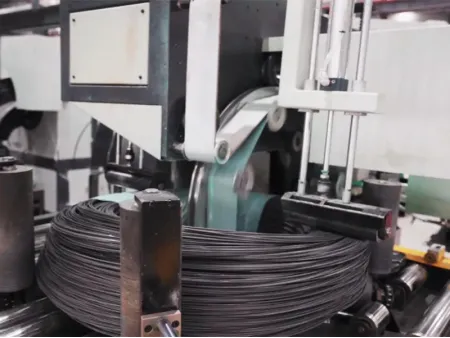

Once the drawn wire reaches the preset weight, the system performs automatic cutting, strapping with PP or PET bands, and automatic transfer to the wrapping station. Coils are then wrapped through the eye using your choice of woven tape, PE film, or kraft paper, followed by automated weighing, label printing, and label application.
All label data is uploaded in real time to your ERP or MES system, enabling efficient data sharing, traceability, and production reporting. The complete process ensures consistency, speed, and reduced manual intervention.

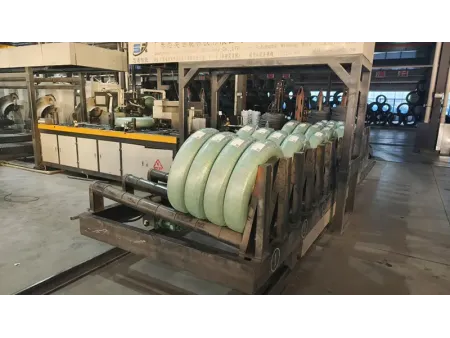

Before packagingAfter packaging- Type: Horizontal coil wrapping machine with roller conveyor
- Dimensions (L×W×H): 14×9×5m
- Inner diameter of coil: 450mm ±20mm (machine can be designed based on the required size of customer's products)
- Outer diameter of coil: 750mm ±20mm (machine can be designed based on the required size of customer's products)
- Coil length: 300mm
- Weight: 100-250kg
- Packaging speed: 1min/pc
- Voltage: AC380V 50Hz
- Total power: ≤145kW
- Air pressure: ≥0.6MPa
- Packaging materials:
Wrapping film / anti-rust film:
Width: 60-90 mm
Core inner diameter: 50 mm
Outer diameter: 100-150 mm
Woven tape / composite paper tape / crepe paper tape:
Width: 60-90 mm
Core inner diameter: 55 mm
Outer diameter: 100-150 mm
