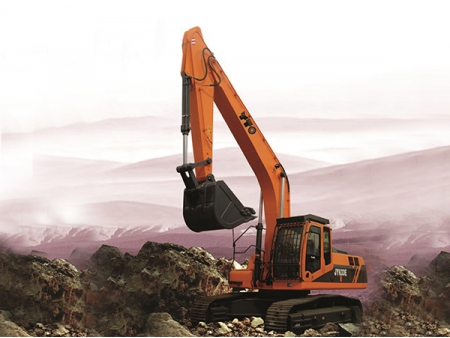

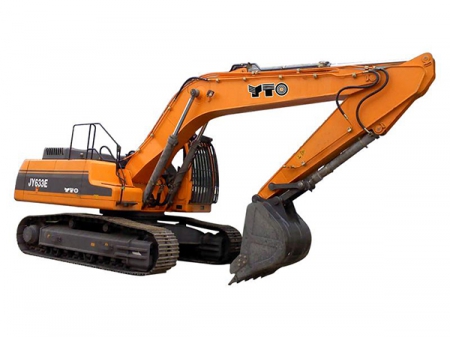

JY633E Crawler Hydraulic Excavator
Request a Quote
Model: JY633E
Application
Suitable For Hydro-Electric Project, Mining, Road Construction, City Dwellings Construction, Pipe Laying And Road Repair Projects.
Features
- The JY633E Is The Latest Generation Of Hydraulic Crawler Excavator. With All Key Components Selected From Renowned International Manufacturers Combined With State Of The Art Hydraulic Electrical System And Structural Engineering. It Provides The Most Efficient And Reliable Performance.
- Dual Hydraulic Pump System With Reverse Flow Control To Maximize Engine Output Power.
- High Efficiency And Health Monitoring Through Advanced Electrical Systems
- High Controllability And Performance Through Smart, Responsive Integrated Hydraulic Control System With Priority Functions.
- Ergonomically Design Air Conditioned And Wide Vision Cabin For Comfort Of The Operator;
Specification
| Model | JY633E |
| Operating Weight (T) | 32.7 |
| Standard Bucket Capacity (m3) | 1.53 |
| Range of Bucket Capacity(m3) | 1.38~1.53 |
| Diesel Engine Manufacturer | Cummins |
| Engine Model | 6C8.3 |
| Engine Power (kw/r/min) | 198/2200 |
| Hydraulic Flow Rate(L/min) | 2X260 |
| Hydraulic Pressure (MPa) | 30 |
| Travelling Speed (km/h) | 0~2.9/5.1 |
| Grade Climbing Capacity (%) | 65 |
| Slewing Speed (r/min) | 11 |
| Bucket Digging Force (kN) | 188 |
| Stick Digging Force (kN) | 137 |
Operating Scope
| Stick Length (mm) | 3200 |
| Maximum Cutting Height (mm) | 10510 |
| Maximum Dumping Height (mm) | 7355 |
| Maximum Digging Depth (mm) | 7400 |
| Maximum Reach (mm) | 10800 |
Dimensions
| Overall Length (mm) | 10620 |
| Overall Width (mm) | 3180 |
| Overall Height of Boom (mm) | 3560 |
| Overall Height of Cab (mm) | 3380 |
| Engine Cover Height (mm) | 2680 |
| Counterweight Clearance (mm) | 1230 |
| Ground Clearance (mm) | 470 |
| Upperstructure Width (mm) | 2960 |
| Rear-End Length/Swing Radius (mm) | 3215 |
| Overall Track Length(mm) | 4690 |
| Track Length on Ground(mm) | 3780 |
| Gauge Width(mm) | 2580 |
| Track Width(mm) | 600 |
| Ground Pressure(Mpa) | 0.066 |
| Fuel tank capacity(L) | 500 |
| Hydraulic oil tank capacity (L) | 260 |
| Engine oil capacity (L) | 26 |
