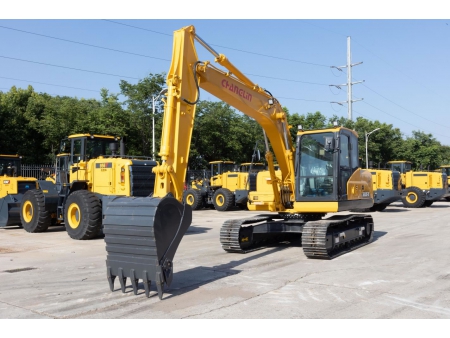

ZG135S Crawler Excavator
Request a Quote
- ZG135S crawler excavator is equipped with Cummins engine, featuring strong power, high efficiency, energy saving, high reliability and durability.
- Adopting an advanced negative flow hydraulic system allows for comfortable operation, high operating efficiency, and excellent cost performance.
- With full power control, four power modes are optional to adapt to different working conditions. The stepper motor accurately controls the throttle, significantly reducing fuel consumption.
- Full 3D modeling and finite element analysis technology are adopted to ensure the reliability and stability of structural parts.
Consulting Products Information
Specifications:
Model | ZG135S |
Length × width × height (mm) | 7860×2500×2800 |
Operating weight (kg) | 13500 |
Rated bucket capacity (m³) | 0.55 |
Max. digging depth (mm) | 5490 |
Max. digging radius (mm) | 8300 |
Max. digging height (mm) | 8495 |
Max. dumping height(mm) | 6060 |
Bucket digging force (kN) | 97 |
Stick digging force (kN) | 70 |
Gradient capacity (%) | 70 |
Diesel engine | Cummins QSF3.8/WeiChai WP4.1 |
Rated output (kW) | 86/92 |
Features
-
- Cummins/WEICHAI engine: The engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance.
-

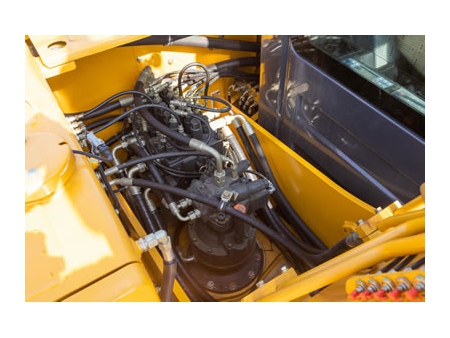

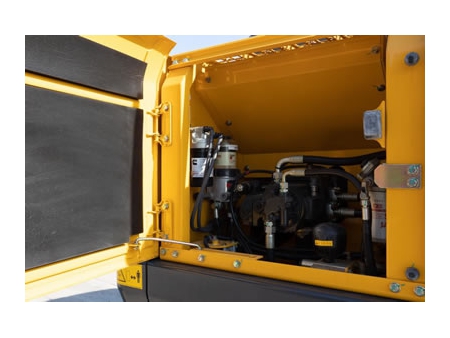

- The original imported hydraulic system comes with constant power and electric proportional control of the dual-pump dual-loop negative hydraulic system, which is stable and reliable.

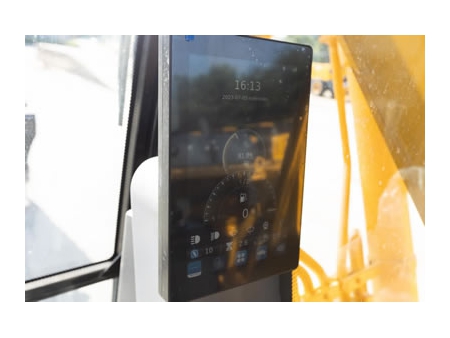

- The accelerator features rapid and accurate control. The application of non-linear multi-dimensional power control optimization improves the working efficiency and reduces the fuel consumption. The preset working modes of Heavy-Load (P), Economic (E), Automatic (A), and Breaking Hammer (B) are at the user's free choice based on the actual working condition. The friendly human-machine interface eases the operations.

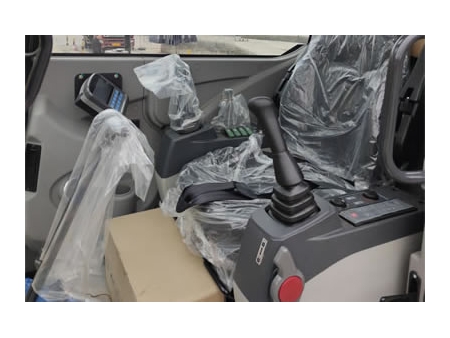

- The crawler excavator features comfortable operating space, wide view to the working, ergonomic control, ease of the operation, etc. User’s operation comfort is maximized by the high-performance shock absorber and vibration isolation.
- Enhanced working device, rotary platform and heavy chassis provide safe, stable, reliable and lasting work.
- With the streamlined design, the mold undergoes electrostatic treatment, ensuring high rigidity and good weather assistance.
