This product has been discontinued and removed from our shelves.

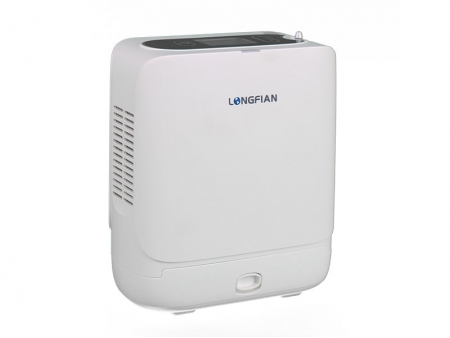

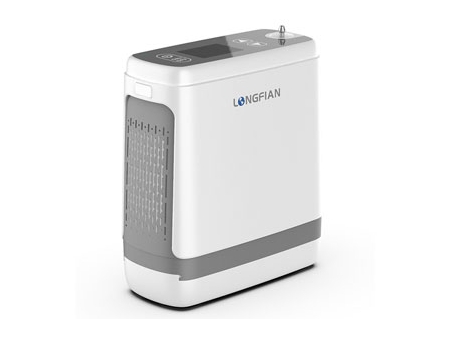

Portable Oxygen Concentrator (Pulse Dose)

Technical Parameters
Portable Oxygen Concentrator (Pulse Dose)
Oxygen Flow Pulse dose delivery; Five flow setting: 1-5
Net Weight 1.98kg (4.37lbs) (includes single battery)
Oxygen Concentration 93%±3%
Dimension 183*86*199mm
Battery Single battery up to 5.5 hours on flow setting 1
Certificate FDA application in process

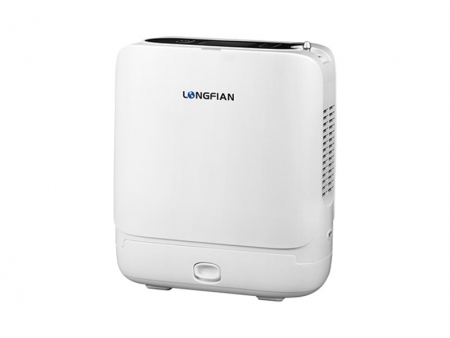

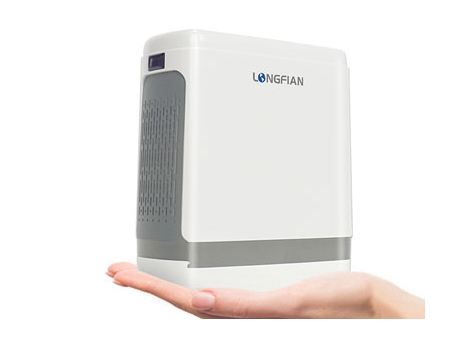

JAY-1000

Technical Parameters
Model JAY-1000
Oxygen Flow Pulse dose delivery
Net weight 1.5kg
Oxygen concentrator 93%±3%
Dimension 193*83*173mm
Battery Single battery up to 3 hours

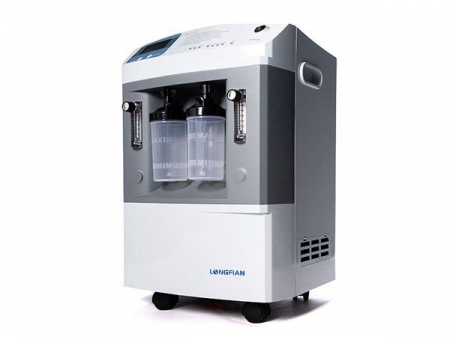

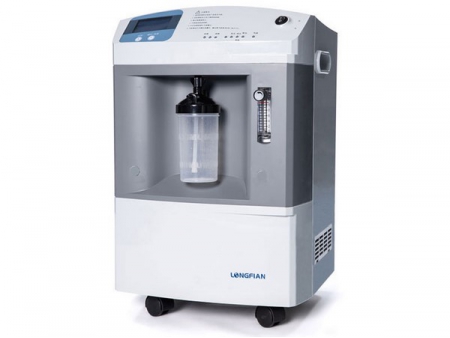

Technical Parameters
Model JAY-8 JAY-10 JAY-10(20PSI)
Flow Rate 0.5-8L/min 0.5-10L/min 0.5-10L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa) 20 PSI (0.14Mpa)
Sound Level ≤52dB
Net Weight 26kg 27kg 29kg
Power Consumption ≤ 550W ≤ 880W
Input Frequency 50Hz; 60 Hz
Input Voltage AC230V±10%; AC110V±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm
Optional Function Dual flow

JAY-5AW

Technical Parameters
Model JAY-5AW
Flow Rate 0.5-5L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Net Weight 16kg
Power Consumption ≤350W
Input Frequency 50Hz ; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm
Certificate CE, FDA

JAY-5BW

Technical Parameters
Model JAY-5BW
Flow Rate 0.5-5L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Power Consumption ≤300W
Input Frequency 50Hz; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm

JAY-5HW

Technical Parameters
Model JAY-5HW
Flow Rate 0.5-5L/min
Oxygen Purity 93%(±3%)
Outlet Pressure 6-10PSI (0.04-0.07Mpa)
Sound Level ≤40dB
Power Consumption ≤350W
Input Frequency 50Hz; 60Hz
Put Voltage AC230V±10%; AC110V±10%
Alarm 1. Power failure alarm
2. High&low pressure alarm
3. Low oxygen concentration alarm

JAY-3EP

Technical Parameters
Model JAY-3EP
Flow Rate 0.5-3L/min(continuous flow)
Modes Pulse dose; continuous
Pulse Mode (Settings) Setting1: 6L; setting2: 9L
Outlet Pressure 0.09Mpa
Oxygen Concentration 93%(±3%)
Sound Level ≤39dB
Power Consumption 280W
Net Weight 12kg
Dimension 335mm*215mm*450mm
Alarm 1. Power off alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm
Features
  • With medical grade oxygen concentration above 90%, it will have better treatment effect for patients with pulmonary fibrosis.
  • Innovative cooling technology ensures 24/7/365 operation.
  • Humidifier bottle with a pressure relief of 6PSI, safer and more comfortable
  • Designed with four flexible castors with two brakes, it's easy to move or situate in any direction, making it safer and more convenient.

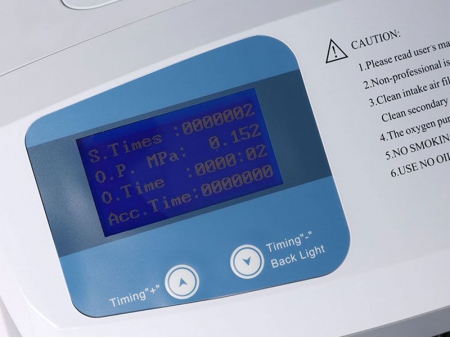

  • Simple operating function and easy-to-read LCD display
Optional
  • Nebulizer
  • Pulse oximeter (SPO2)
Application
  • According to doctor’s prescription, oxygen therapy/inhalation is vital to patients with breathing-related disorders, for example, pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma.
  • Medical 10lpm high purity medical oxygen concentrator is very useful for curing and recovering from COVID-19.
  • It can be connected with HFNC to provide oxygen with stable high concentration, which would be more comfortable for patients.
  • Connecting with BIPAP would be more convenient for COPD patients to have oxygen therapy at home.
  • Connected with 5-way splitter, it can support 5 people to inhale oxygen at the same time.
  • Connected with oxygen chamber, it provides good treatment for cardiovascular and cerebrovascular diseases.
