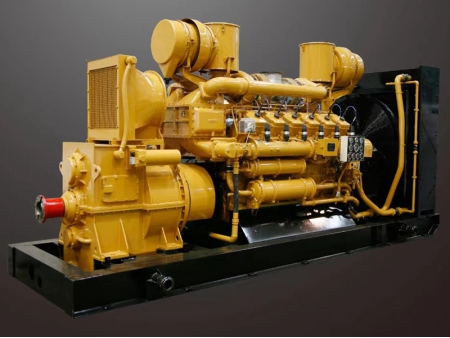

Natural Gas Generator (500kW)

Natural Gas Generator (500kW)
Natural Gas Generator (500kW)
Natural Gas Generator (500kW)
Request a Quote
HIGH QUALITY AND EFFICIENCY WIDE POWER RANGE
Advantage

According to Order No. 17 issued by the Ministry of Petroleum Industry of China in 1982, Jichai began developing high-power turbocharged natural gas engines in 1982. From 1984 to 1988, three prototype tests were completed in the laboratory, followed by 10,000 hours of industrial testing in the Shengli Oilfield. On October 12, 1988, the engine was officially certified by the state as a 600 kW / 1000 r/min externally mixed, turbocharged high-power gas engine. After decades of continuous improvement, the product line has been fully serialized and is now widely used across various oil and gas sectors, delivering significant economic benefits.

Click Here to
Features of Natural Gas Generator (500kW)
  • Production code: 127/408 mixer
  • WOODWARD controller
  • Magneto ignition system with high durability spark plug and high pressure coil
  • Diaphragm air-gas valve carburetor/mixer
  • Inlet-gas pressure: 0.8-1.4 bar
  • Mainly used in natural gas power generation and oil field drilling power fields
Technical parameters
Genset Model 500GF-T
Alternator model Brush-less Excitation, Automatic Voltage Regulation
Rated power 500 kW
Rated voltage 400V/6300V/10500V/480V/13800V
Rated frequency 50/60 Hz
Rated power factor 0.8
Protection class IP23
Insulation class H
Engine Model 12V190ZDT-2
Type Four storkes, V-type, inter-cooling, Spark plug ignition, Electric controller, Outer mixed
No. of cylinder 12
Bore 190 mm
Stroke 210 mm
Total displacement 71.5 L
Rated speed 1000 r/min
Rated power 552 kW
Gas consumption ≤11386 kJ/kW.h
Oil consumption ≤0.8 g/kW.h
Cooling type Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method Pressure and splash lubrication
Starting method Electric starting

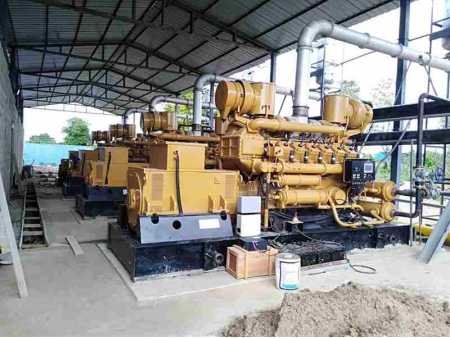

Application Cases
Application project
  • Niger natural gas power plant generation project
  • Kazakhstan gas coupling set unit project
  • Sudan natural gas generator set power plant project

CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
